DTU224NRB | Safety switch, double throw, non fusible, 200A, 240 VAC/250 VDC, 2 poles, 15 hp, neutral, NEMA 3R, bolt on | Square D by Schneider Electric

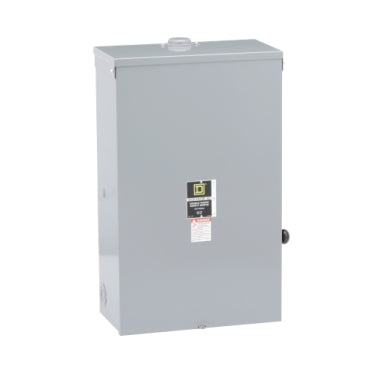

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to DTU224NRB
Overview
Details for DTU224NRB
Safety switch, double throw, non fusible, 200A, 240 VAC/250 VDC, 2 poles, 15 hp, neutral, NEMA 3R, bolt on
The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and can be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 200A. This non-fusible disconnect switch is surface mounted and has a NEMA 3R protection rating. This Double Throw Safety Switch complies to UL listed certifications. Dimensions for this product are 24 in (H), 32.5 in (W),10.63 in (D). This product comes with an 18 month warranty.Specifications
- Product
- Double Throw Safety Switch
- Duty Rating
- General duty
- Disconnect Type
- Non-fusible disconnect switch
- Factory Installed Neutral
- Neutral (factory installed)
- Number of Poles
- 2
- Current Rating
- 200 A
- Voltage Rating
- 240 V AC
- Enclosure Rating
- NEMA 3
- Motor power hp
- 15 hp at 240 V AC 50-60 Hz for 1 phase motors
- short-circuit current
- 10 kA H or K
- fuse type
- H or K
- Mounting Type
- Surface
- Wire Size
- AWG 6...300 kcmil copper or aluminium
- tightening torque
- 340 lbf.in (38.41 N.m) (AWG 6...300 kcmil)
- Depth
- 10.63 in (270.00 mm)
- Width
- 24 in (609.60 mm)
- Height
- 32.5 in (825.50 mm)
- Net Weight
- 65.98 lb(US) (29.93 kg)
- Certifications
- UL Listed
- Category
- 00133-DT SWITCH;NEMA3R
- Discount Schedule
- DE1
- GTIN
- 785901174523
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.63 in (27.0 cm)
- Package 1 Width
- 23.23 in (59.0 cm)
- Package 1 Length
- 33.86 in (86.0 cm)
- Package 1 Weight
- 69.86 lb(US) (31.688 kg)
- Warranty
- 18 months
