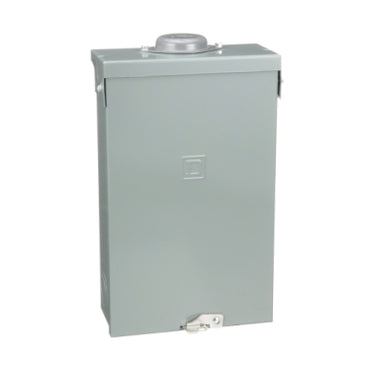

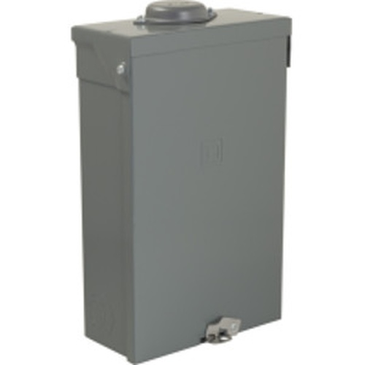

HOM48L125GRB | Homeline Load Center, 240V, 125A ,1 Phase, NEMA 3R Outdoor | Square D by Schneider Electric

Homeline Load Center, 240V, 125A ,1 Phase, NEMA 3R Outdoor

Homeline Load Center

• System Voltage: 240V
• Line Rated Current: 125A
• Number of Phases: 1 Phase
• Degree of Protection: NEMA 3R Outdoor
• Cover Type: Surface Cover
• Electrical Connection: Lugs
• Provided Equipment: Grounding Bar

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 4 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 2/0 copper or 12 AWG to 2/0 AWG aluminum wire. Load center has a grounding bar. This Homeline load center has a height of 14.80 inches, a width of 8.89 inches, and depth of 4.25 inches. Homeline load centers are UL Listed.
