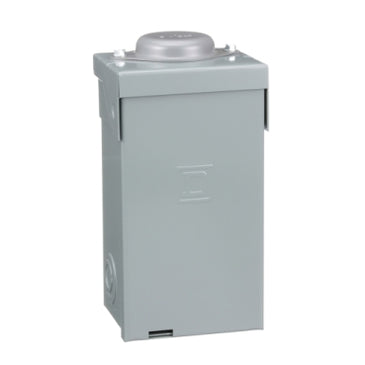

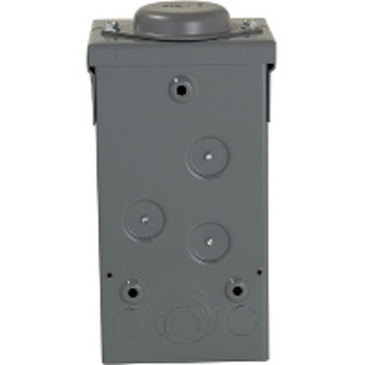

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM24L70RB

Documents and manuals

Square D HOM24L70RB Documents

Overview

Details for HOM24L70RB

Homeline Load Center, 120/240V AC, 70A ,1 Phase, NEMA 3R Outdoor

Homeline Load Center
  • System Voltage: 120/240V AC
  • Line Rated Current: 70A
  • Number of Phases: 1 Phase
  • Degree of Protection: NEMA 3R Outdoor
  • Cover Type: Surface Cover
  • Electrical Connection: Lugs
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 70A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 3 AWG aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed.

Specifications

Product Type
Load Center
Marketing Trade Name
Homeline
Load Center Type
Main lugs
Rated Current
70 A
Number of Spaces
2
Maximum Number of Single Pole Circuits
4
Enclosure Rating
NEMA 3R outdoor
Cover Type
Surface cover
Electrical Connection
Lugs
Max Short Circuit Current Rating
10 kA
Maximum Number of Tandem Breakers
2
Number of Phases
1 phase
Voltage Rating
120/240 V AC
Wire Size
AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper
Ground Bar
Grounding bar (ordered separately)
Wiring Configuration
3-wire
Busbar Material
Tin plated aluminium busbar
Enclosure Material
Welded galvannealed steel
Surface Finish
Baked enamel Gray
Box Number
1R
Height
9.37 in (238 mm)
Depth
4.02 in (102 mm)
Width
4.88 in (124 mm)
Ambient Air Temperature for Operation
23 °F (-5 °C);104 °F (40 °C)
Product Certifications
UL listed file E-6294
Category
00149-HOM 2-8 CKT;MLO;NEMA1&3R
Discount Schedule
DE3C
GTIN
785901061175
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.80 in (12.192 cm)
Package 1 Width
5.70 in (14.478 cm)
Package 1 Length
11.00 in (27.94 cm)
Package 1 Weight
4.95 lb(US) (2.245 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
71
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
356.92 lb(US) (161.895 kg)
Warranty
Lifetime
