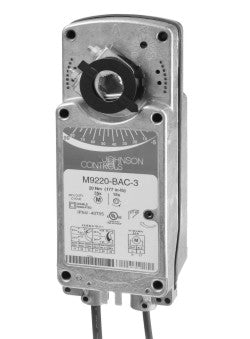

The photo is for representation purposes only and may not be a photo of product being purchased.


Details for M9220-GGC-3



The M9220-xxx-3 actuators are direct-mount, spring-return electric actuators that operate with these available power options:

  • AC 24 V at 50/60 Hz or DC 24 V (AGx, BGx, GGx, HGx)
  • AC 120 V at 60 Hz (BAx)
  • AC 230 V at 50/60 Hz (BDx)

These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with 1/2 to 3/4 in. or 12 to 19 mm round shafts, or 3/8 and 1/2 in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator. An optional M9220-600 Jackshaft Coupler Kit is available for 3/4 to 1-1/16 in. or 19 to 27 mm round shafts, or 5/8 and 3/4 in. or 16, 18, and 19 mm square shafts.

A single M9220-xxx-3 Electric Spring-Return Actuator provides a running and spring-return torque of 177 lb·in (20 N·m). Two or three models mounted in tandem deliver twice or triple the torque. Integral line voltage auxiliary switches are available on the -xxC models to indicate end-stop position or to perform switching functions within the selected rotation range.


  • Available torques of 177 lb·in (20 N·m) for single actuators, 354 lb·in (40 N·m) for two models, and 531 lb·in (60 N·m) for three models mounted in tandem—offer a selection that is most suitable for the application.
  • Reversible mounting design—simplifies installation and enables the actuator to spring return in either direction.
  • Electronic stall detection throughout entire rotation range—extends the life of the actuator by deactivating the actuator motor when an overload condition is detected.
  • Removable coupler—adapts to a shorter damper shaft.
  • Integral 48 in. (1.2 m) halogen-free cables with colored and numbered conductors— simplify field wiring.
  • Integral auxiliary switches (xxC Models)— provide one fixed and one adjustable switch point with line voltage capability.
  • NEMA 2 (IP54) rated aluminum enclosure—protects the internal components of the actuator from dirt and moisture.
  • Easy-to-use locking manual override with auto release and crank storage—allows for manual positioning of the actuator hub.
  • Integral connectors for 3/8 in. flexible metal conduit—simplify installation and field wiring.
  • Microprocessor-controlled brushless DC motor (-AGx, -GGx, and -HGx types)— provides constant run-time independent of torque.

  • Damper Actuator
  • 24 VAC/VDC
  • Proportional [0(2)..10 VDC]
  • Spring Return
  • 177 in-lb Torque
  • 48 in. Appliance Cable
  • 2 x SPDT
  • 150 sec Runtime
  • NEMA 2
  • 0101 - 0200 IN-LB


Item Number M9220-GGC-3
Brand Johnson Controls
Actuator Type Damper
Category Dampers & Actuators
Control Input Modulating
End Switch Yes
Housing NEMA 2
Section Electric Actuators
Section Valves & Actuators
Spring Return Spring Return
SubCategory Electric Actuators
Torque 177 in-lb
Voltage 24V
