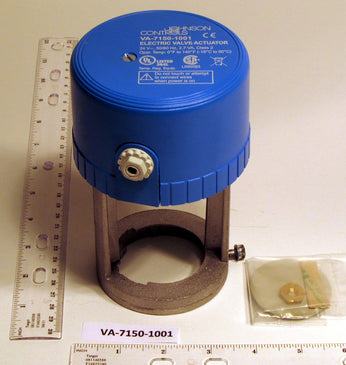

VA-7150-1001 | VA-715x Series Valve Actuator (24VAC) - Floating/Incremental | Johnson Controls
Documents and manuals
Johnson Controls VA-7150-1001 Documents
Overview
Details for VA-7150-1001
The VA-715x Series synchronous, motor-driven actuator provides incremental (three-wire), incremental with feedback, or proportional control of valves with up to 3/4 in. (19.05 mm) stroke in HVAC applications. This compact, non-spring-return actuator hasa 90 lb (400 N) force minimum, and responds to a variety of input signals. The VA-715x Series can be easily field mounted or ordered factory coupled to VG7000 Series Bronze Control Valves.
Description
The VA-715x Series synchronous, motor-driven actuator provides incremental (three-wire), incremental with feedback, or proportional control of valves with up to 3/4 in. (19.05 mm) stroke in HVAC applications.
This compact, non-spring-return actuator has a 90 lb (400 N) force minimum, and responds to a variety of input signals.
The VA-715x Series can be easily field mounted or ordered factory coupled to VG7000 Series Bronze Control Valves.
Features
- magnetic clutch provides constant output force for positive closeoff of valves, and protects the motor in stall conditions
- selectable direct and reverse action simplifies setup and installation
- durable construction provides a longer cycle life
- compact unit provides 90 lb force output, covering a wide range of applications with just one actuator
- unique yoke design enables easy field mounting to valves, reducing installation and stroke adjustment time
- Electric Valve Actuator
- Three-Wire Incremental
- 90 in-lb
- 24 VAC
- NEMA 2
- Screw Terminals for 16 AWG Maximum
Specifications
Item Number | VA-7150-1001 |
Brand | Johnson Controls |
Actuator Type | Valve |
Category | Valves & Valve Actuators |
Section | Electric Valve Actuators |
Section | Valves & Actuators |
SubCategory | Electric Valve Actuators |
