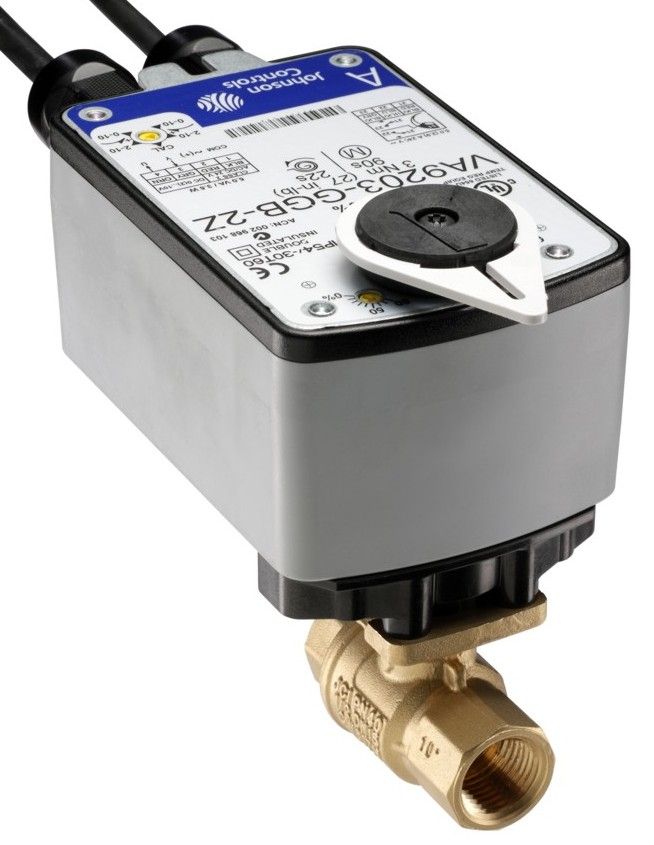

ROTARY ACTUATOR; 27 LB IN; (3N-M) SPRING RETURN DIRECT-COUPLED ACTUATOR
Description
The VA9203-xxx-xx Series Electric Spring-Return Ball Valve Actuators are direct-mount valve actuators that operate on AC/DC 24 V power. These bidirectional actuators are used to provide accurate positioning on Johnson Controls® VG1000 Series 1/2, 3/4, and 1 in. (DN15, DN20, and DN25) ball valves in HVAC applications. A mechanical spring-return system provides rated torque with or without power applied to the actuator. The series includes the following control options:
- • on/off, 24 V, or 85 to 264 VAC power
- on/off and floating point, 24 V power
- proportional, 24 V power, for 0(2) to 10 VDC or 0(4) to 20 mA control signal
An accessory crankarm and remote mounting kit are available for applications where the actuator cannot be direct-coupled to the damper shaft. An optional line voltage auxiliary switch indicates an end-stop position or performs switching functions within the selected rotation range. Refer to the VA9203-xxx-xx Series Electric Spring-Return Actuators Product Bulletin (LIT-12011702) for important product application information.
Features
- Direct mounting with a single screw
- Electronic stall detection
- Double-insulated construction
- Microprocessor-controlled brushless DC motor (-AGx and -GGx types)
- External mode selection switch (-AGx and -GGx types)
- Integral cables with colored and numbered conductors
- Integral connectors for 1/2 in. (13 mm) threaded conduit connector(s)
- Optional integrated auxiliary switch
- Plenum rated models
- Optional thermal barrier
- Available weather shield for field mounting
- Override control (proportional models only)
- Underwriters Laboratories (UL),CE Mark, and CTick compliance
- Manufactured under International Standards Organization (ISO) 9001 quality control standards
- 5-year warranty
- Valve Actuator
- Spring Return
- 27 lb-in
- Spring Return
- Proportional
- 24 VAC
- 120 in. Plenum Cable
Specifications
Item Number | VA9203-GGA-2Z |
Brand | Johnson Controls |
Actuator Type | Valve |
Category | Valves & Valve Actuators |
Section | Electric Valve Actuators |
Section | Valves & Actuators |
SubCategory | Electric Valve Actuators |
