EFX24-S N4 | Damper Actuator | 270 in-lb | Spg Rtn | 24V | On/Off | SW | NEMA 4 | Belimo

Configurable Damper Actuator, 270 in-lb [30 Nm], Spring return, AC/DC 24 V, On/Off, 2 x SPDT, NEMA 4

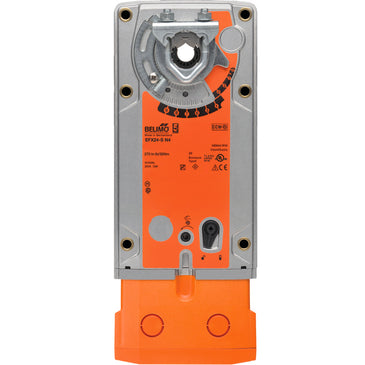

Belimo | EFX24-S N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EFX24-S N4
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo EFX24-S N4 Documents

Datasheet Installation Instructions More Info

Overview

Details for EFX24-S N4

Damper Actuator | 270 in-lb | Spg Rtn | 24V | On/Off | SW | NEMA 4

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. A feedback signal is provided for position indication or master-slave applications. Two EF's can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4" diameter shaft. OR Maximum of three EF's can be piggybacked for torque loads of up to 810 in-lbs. Minimum 1" diameter shaft. Master-Slave wiring for either configuration.

Specifications

Item Number EFX24-S N4
Brand Belimo
Actuator Type Damper
Control Input On/Off
End Switch Yes
Housing NEMA 4
Spring Return Spring Return
Torque 270 in-lb
Voltage 24V

Parts & Accessories

Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
$507.60 each
Belimo ZG-R01 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Blackhawk Supply
ZG-R01 | 4 to 20 mA adaptor: 500 ohms | 1/4 W resistor with 6" pigtail wires. | Belimo
$15.75 each
Belimo ZK1-GEN Cable for use with ZTH US to connect to diagnostic/programming socket. | Blackhawk Supply
ZK1-GEN | Cable for use with ZTH US to connect to diagnostic/programming socket. | Belimo
$77.40 each
Belimo KG10A Ball joint for 3/8" diameter rod | zinc plated. | Blackhawk Supply
KG10A | Ball joint for 3/8" diameter rod | zinc plated. | Belimo
$26.85 each
Belimo ZG-X40 120 to 24 VAC | 40 VA transformer. | Blackhawk Supply
ZG-X40 | 120 to 24 VAC | 40 VA transformer. | Belimo
$67.05 each
Belimo SGF24 Positioner for remote control of proportional actuators (flush mount). | Blackhawk Supply
SGF24 | Positioner for remote control of proportional actuators (flush mount). | Belimo
$97.65 each
