LMB24-3-T | Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | Belimo

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals

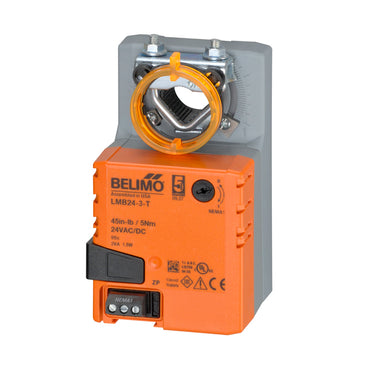

Belimo | LMB24-3-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMB24-3-T
DocumentsOverview SpecificationsParts & AccessoriesReviews

Documents and manuals

Belimo LMB24-3-T Documents

Datasheet Installation Instructions More Info

Overview

Details for LMB24-3-T

Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point

Applications

For On/Off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 1/4” up to 5/8” in diameter by means of its standard universal clamp. Shafts up to 3/4” diameter can be accommodated by an accessory clamp.


    Specifications

    Actuator Type
    Non fail-safe
    Angle of Rotation
    95
    Control Type
    Floating/3-point
    Degree of Protection
    IP20 NEMA 1 UL Enclosure Type 1
    Electrical Connection
    terminals
    Manual Override
    External push button
    Power Consumption (Holding)
    0.2 W
    Power Consumption (Running)
    1.5 W
    Running Time (Motor)
    95 s / 90B0
    Safety Function
    NO
    Torque
    45 in-lb [5 Nm]
    Voltage AC/DC
    AC/DC 24 V

    Parts & Accessories

    Belimo ZTH US Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Blackhawk Supply
    ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo
    $507.60 each
    Belimo S2A Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
    S2A | Auxiliary switch | 2x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
    $93.60 each
    Belimo P2800A GR Feedback potentiometer 2800 ohms. | Blackhawk Supply
    P2800A GR | Feedback potentiometer 2800 ohms. | Belimo
    $103.05 each
    Belimo S1A Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Blackhawk Supply
    S1A | Auxiliary switch | 1x SPDT | 3A (0.5A inductive) @ 250 VAC max. | Belimo
    $62.10 each
    Belimo P140A GR Feedback potentiometer 140 ohms | Blackhawk Supply
    P140A GR | Feedback potentiometer 140 ohms | Belimo
    $103.05 each
    Belimo ZG-LMSA Shaft extension for 1/2" diameter shafts (3" L). | Blackhawk Supply
    ZG-LMSA | Shaft extension for 1/2" diameter shafts (3" L). | Belimo
    $45.00 each
