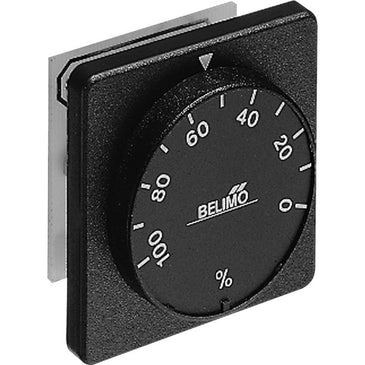

SGF24 | Positioner for remote control of proportional actuators (flush mount). | Belimo

Positioner for remote control of proportional actuators (flush mount).

Application

These positioners are intended for the remote control of modulating actuators or for use as a minimum positioner (providing a minimum limit for the output signal from a modulating controller). The control range is 0 to 100% of the angle of rotation of the actuator.

Positioner SGA24 is for surface mounting with a NEMA 2 housing included. Positioner SGF24 is for flush mounting.

Operation

The positioner receives its supply voltage through terminals 1 and 2. A rotary knob is turned, producing a proportional control signal (Y) at the output (terminal 3) of either 0.5 to 10 VDC or 2 to 10 VDC and therefore a proportional change in the position of the actuator between 0 and 100%. When used for a minimum limit, the positioner works as a higher of 2 signal selector. This function allows only the signal from the controller or positioner, whichever is greater, to go to the actuator.

Function

The changeover from 2 to10 V to 0 to 10 V is selected by means of a slide switch on the printed circuit board.

The angle of rotation of the knob can be limited mechanically, by moving the adjustable stops under the knob.
