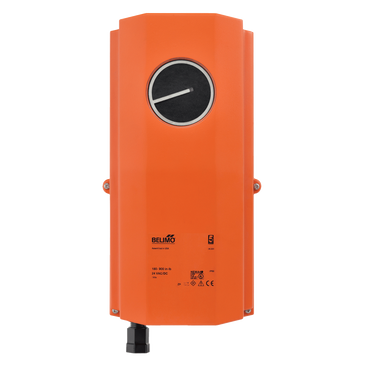

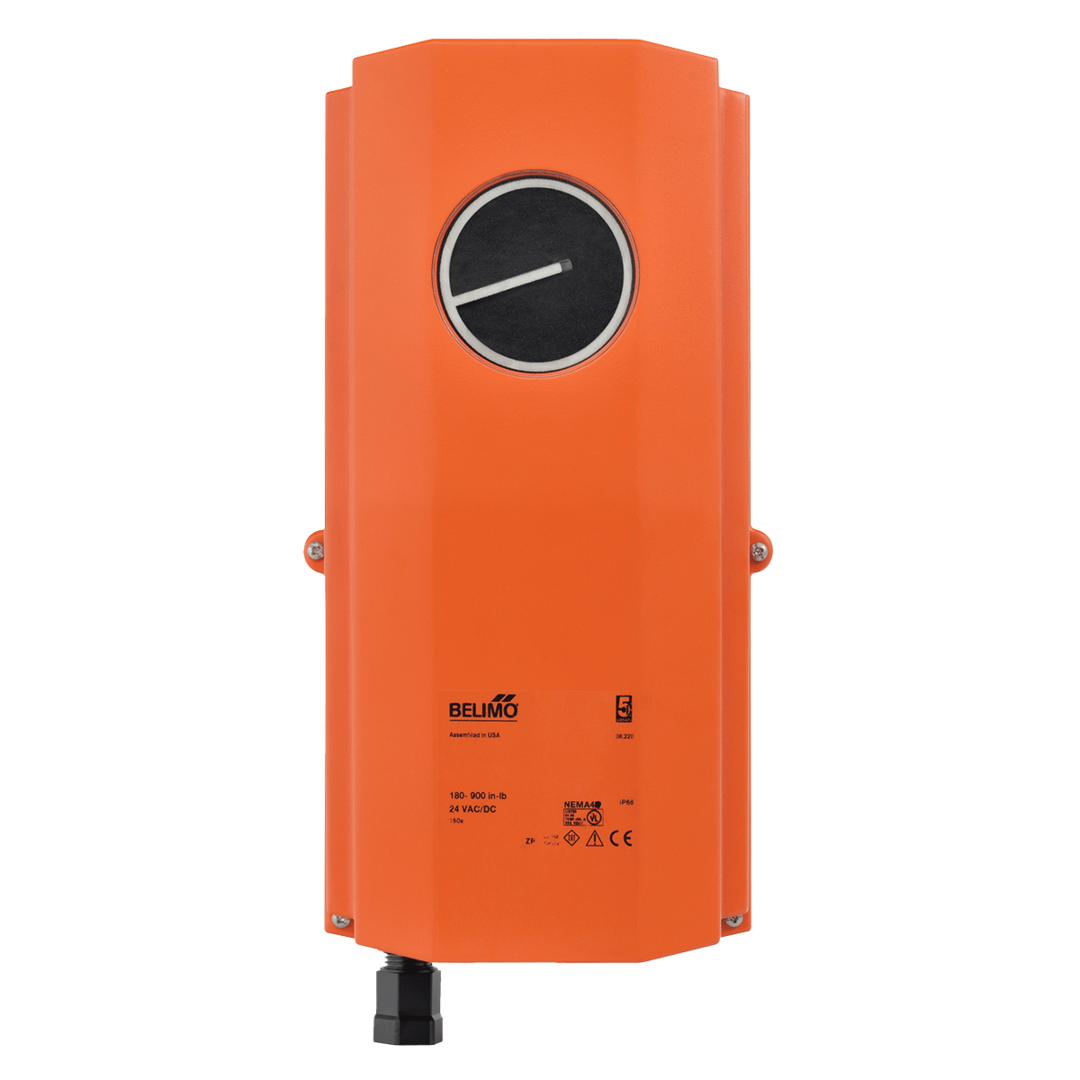

AMX24-3-T N4 | Damper Actuator | 160 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | NEMA 4 | Belimo
Configurable Damper Actuator, 180 in-lb [20 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminals
Documents and manuals
Belimo AMX24-3-T N4 Documents
Overview
Details for AMX24-3-T N4
Damper Actuator | 160 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | NEMA 4
Application
For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to ¾” in diameter by means of its universal clamp, self-centered default.
Operation
The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement. The AMB24-3-T N4 provides 95° of rotation and a visual indicator indicates position of the actuator. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover. The AMB24-3-T N4 actuator uses a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode. Add-on auxiliary switches or feedback potentiometers are easily fastened directly onto the actuator body for signaling and switching functions.
Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 90 s / 90B0
- Running Time range (Motor)
- 90 or 150 s
- Safety Function
- NO
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
