LNP-1600G | 16-Port Industrial PoE+ Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port) | Antaira

16-Port Industrial PoE+ Unmanaged Ethernet Switch, w/16*10/100/1000Tx (30W/Port)

Brand: AntairaSKU: LNP-1600G

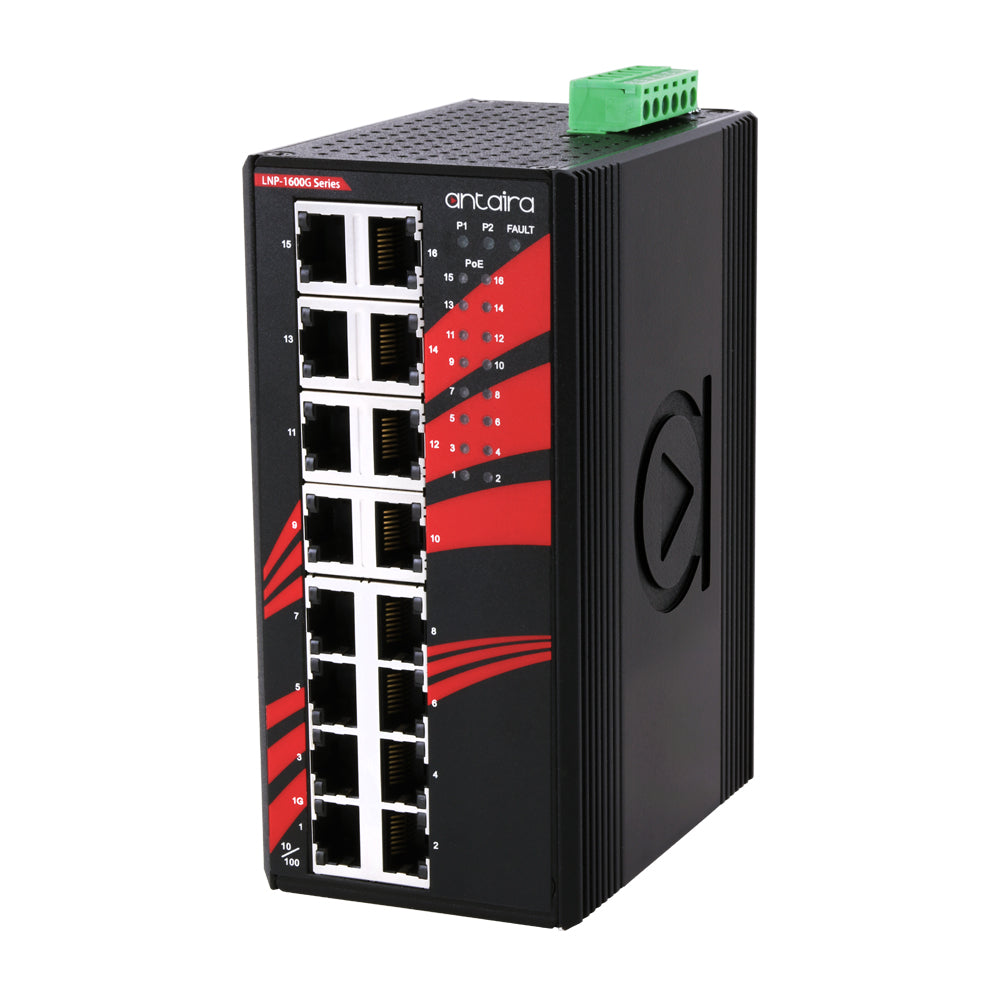

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-1600G

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-1600G

16-Port Industrial PoE+ Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port)

Antaira’s LNP-1600G series switch is a smart 16-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 16. This switch is classified as power sourcing equipment (PSE), and when used in this way, the LNP-1600G series switch enables centralization of the power supply and provides up to 30 watts of power per port. The LNP-1600G series switch can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100/1000BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

Network broadcast storm protection
16-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
2K MAC Address Table
Surge Protection: 2,000 VDC support
ESD Protection: 6,000 VDC support
Redundant Power Input Design – 48~55VDC
Built-in 1 relay output for Port Break Alarm
IP30 Rugged Aluminum Case Design
DIN-Rail and Wall Mount support
Operating Temperature range -10° to 70°C
5-Year Warranty

Included

DC Cable - 18 AWG with DC jack 5.5x2.1mm
LNP-1600G
Quick Installation Guide
RJ45 dust cover set
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 67 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN 55032 Class A,;EN 61000-6-4 Class A
EMS: CE EN 55024 Class A,;EN 61000-6-2 Class A,;IEC61000-4-2 (ESD),;IEC61000-4-3 (RS),;IEC61000-4-4 (EFT),;IEC61000-4-5 (Surge),;IEC61000-4-6 (CS),;IEC61000-4-8 (Magnetic Field)
Ethernet Port: 16*10/100/1000T(X) with 16*PoE+, auto;negotiation speed, Full/Half duplex mode, and;auto MDI/MDI-X connection
Flow Control: IEEE 802.3x back pressure flow control
Free Fall: IEC60068-2-32
Green: RoHS Compliant
Housing: Aluminum and Metal, IP30 protection
Input Voltage: 48 to 55VDC, Redundant Inputs
Jumbo Frame: 9,216bytes
LED Indicators: Power 1, Power 2, Fault;Ethernet Ports: On- Link / Flashing- Data transmitting;PoE: On- connected to PD devices
MAC Table Size: 8K
Max. PoE Power Budget: 240Watts
Memory Buffer: 512Kbytes
Mounting: DIN-Rail, Wall Mounting (optional)
Network Cable: 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable;EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable;EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable;EIA/TIA-568 100-ohm (100m)
Operating Temperature: STD: -10°C to 65°C;EOT: -40°C to 75°C
Overload Current Protection: Present
PoE Pin Out: V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI;Alternative A)
PoE Power Output: 30Watts max. per PoE port
Power Connection: 1 removable 6-contact terminal block
Power Consumption: 13Watts for System
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
Shock: IEC60068-2-27
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3af/at Power over Ethernet
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane: Non-Blocking Switching Fabric
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
Warranty: 5 Years
Weight: Unit: 2.65 Ibs.;Shipping: 3.09 Ibs
