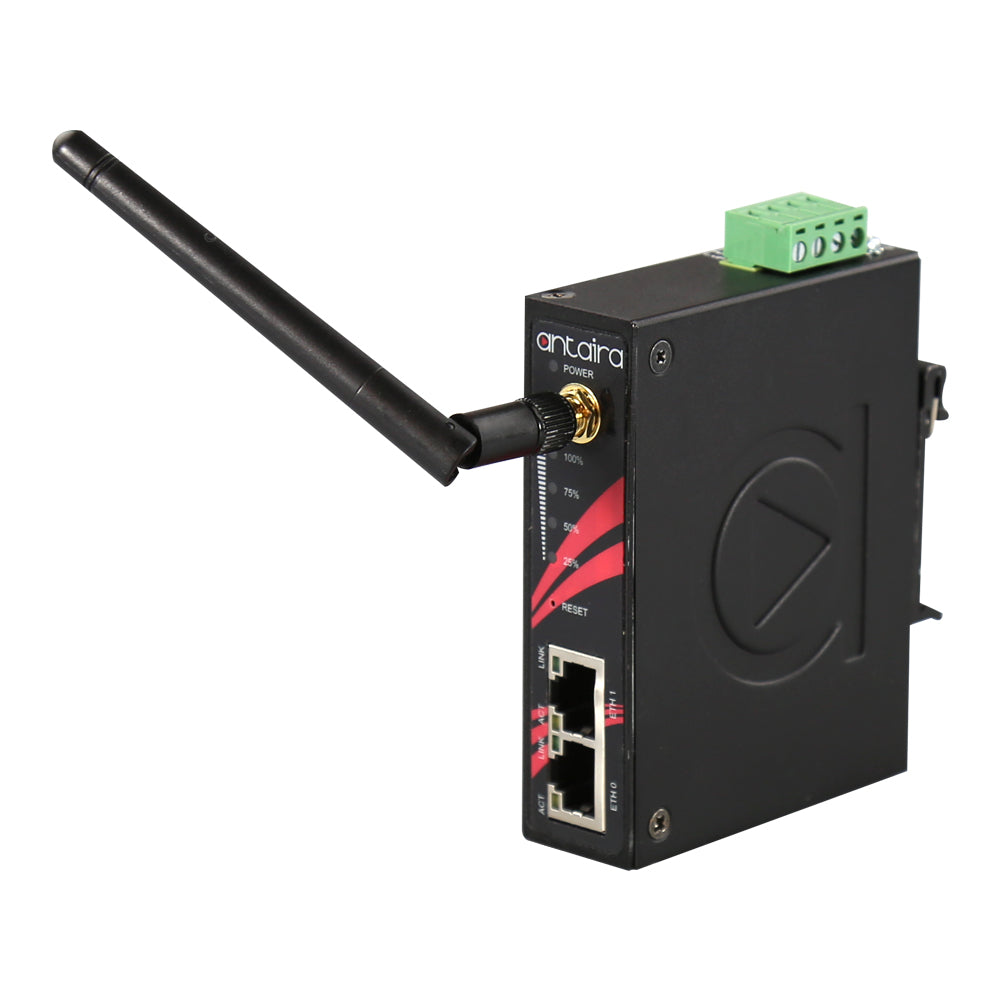

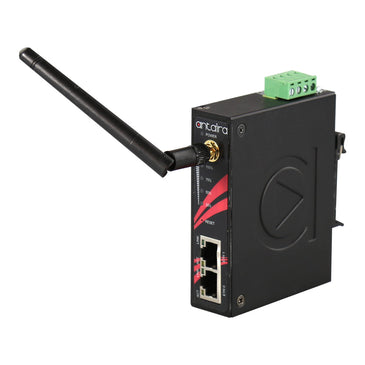

AMS-2111 | Industrial 802.11b/g/n Wireless (Wi-Fi) LAN Access Point/Bridge/Repeater | Antaira

Industrial 802.11b/g/n Wireless (Wi-Fi) LAN Access Point/Bridge/Repeater

Antaira Technologies’ AMS-2111 are designed for industrial and enterprise wireless access applications. Embedded with the Qualcomm/Atheros AR9331 chipset, it boasts network robustness, stability and wider network coverage with a very low voltage input. Based on IEEE 802.11 b/g/n, the access point supports high-speed data transmission of up to 150MBps.The AMS-2111 are capable of operating in different modes, which makes it suitable for a wide variety of wireless applications, including long-distance deployments. The unit also allows the user to position the wireless antenna in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location.

Features

• WLAN Supports up to 150MBps
• Industrial 1x1 SISO (Single Input Single Output)
• Supports IEEE 802.11 b/g/n
• Supports 2*10/100Base-TX WAN/LAN port
• Qualcomm/Atheros AR9331 SoC
• Tx Power (EIRP) 21 dB for 2.4GHz
• WPA, WPA2, TKIP, AES
• Power Input: 9~48VDC in 4-pin terminal block
• Reverse Polarity Protection
• IP30 Protection
• DIN-Rail or Wall Mountable
• Operating Temperature Range – STD: 0° to 60°C
• 5-Year Warranty

Included

• 1 - 5dB antenna
• AMS-2111
• Quick Installation Guide
• Wall mounting bracket set with screws
