FCU-2805P-SFP | 10/100/1000TX To SFP (Mini-GBIC) Media Converter w/ IEEE 802.3at PoE+ Injector Port | Antaira
10/100/1000TX To SFP (Mini-GBIC) Media Converter w/ IEEE 802.3at PoE+ Injector Port

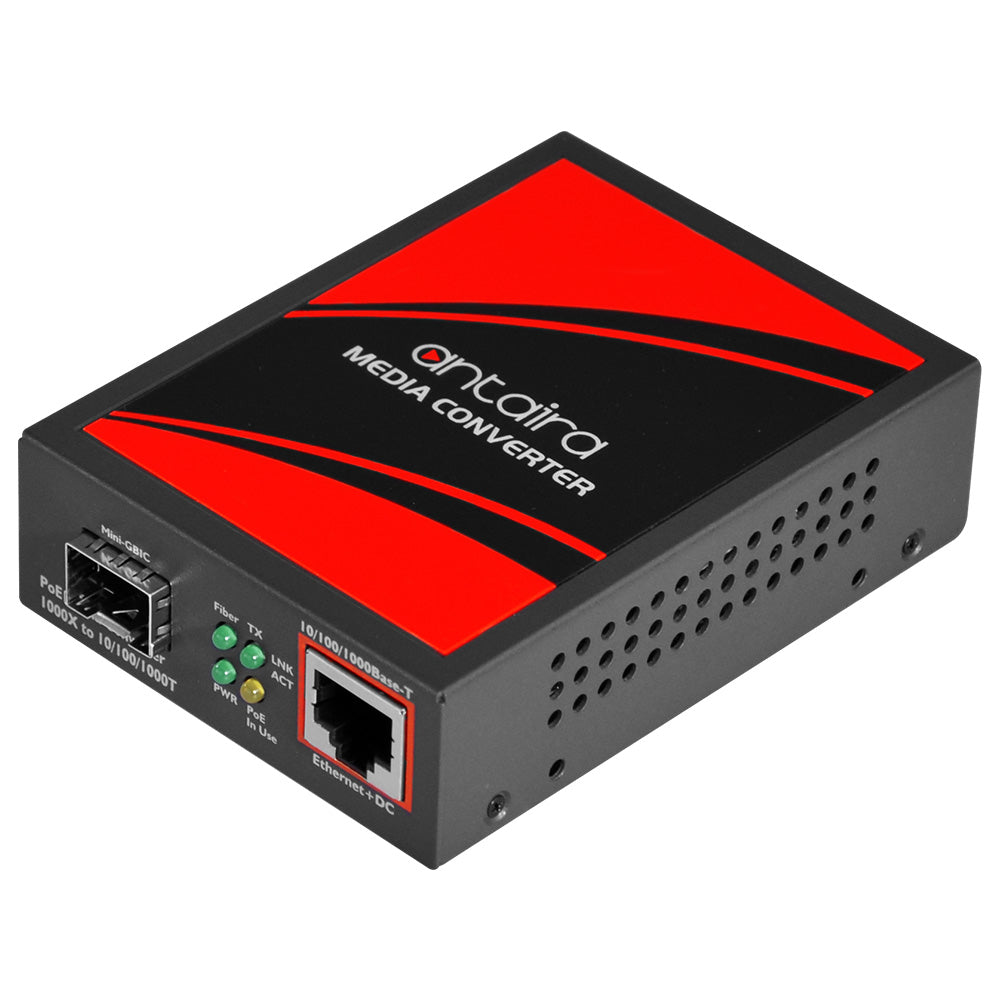

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FCU-2805P-SFP
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira FCU-2805P-SFP Documents
Overview
Details for FCU-2805P-SFP
10/100/1000TX To SFP (Mini-GBIC) Media Converter w/ IEEE 802.3at PoE+ Injector Port
Antaira Technologies FCU-2805P-SFP is a compact gigibit fiber to 10/100/1000 Ethernet media converter. The FCU-2805P-SFP is housed in a industrial metal case and conforms to the FCC emission standards. The FCU-2805P-SFP features a standard LC fiber connector as well as the copper STP-RJ45 Ethernet connector. The FCU-2805P-SFP is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The FCU-2805P-SFP features LEDs that provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The FCU-2805P-SFP is a gigabit media converter that is also able to provide IEEE 802.3at high power PoE. With 30 watts of available PoE, the FCU-2805P-SFP media converter has the power and fiber capabilities for many different applications.Features
- Complies with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3af
- Supports PoE Power up to 30 Watts per Port
- Provides DC 52V Power over RJ-45 Ethernet Cable
- Mini-GBIC SFP Connector
- IEEE 802.3x Full-Duplex Flow-Control & Back-Pressure in Half-Duplex
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Mechanism
- Compacts Size for Easy Installation
Included
- External Power Adapter
- FCU-2805P-SFP
- Quick Start Guide
Specifications
- Approvals
- FCC Class A, CE Class A
- Connector
- LC
- Dimensions
- 98 x 70 x 26 mm
- Dip Switch
- LFP Function (Disable/Enable) Setting
- Ethernet
- 1 x RJ45 Interface
- Fiber
- 1 x SFP Slot
- Humidity
- 5% ~ 90% non-condensing
- IEEE
- IEEE 802.3 10BaseT;IEEE 802.3u 100BaseTX;IEEE 802.3ab 1000BaseT;IEEE 802.z 1000BaseX
- LED
- Power, TP Link/ACT, Fiber Link/ACT, PoE
- Link Budget
- *See SFP Specifications
- Max Tx Power
- *See SFP Specifications
- Min Tx Power
- *See SFP Specifications
- Operating Temperature
- 0° ~ 50° C (32° ~ 122° F)
- Poe Pin Assignment
- 1/2(+), 3/6(-)
- Power
- 52V DC, 0.58A External AC-to-DC Adapter
- Power Output
- Max. 30 Watts
- Sensitivity
- *See SFP Specifications
- Storage Temperature
- -10° ~ 70° C
- Typical Distance
- *See SFP Specifications
- Warranty
- 2 Years
- Wave length
- *See SFP Specifications
- Weight
- 200g
