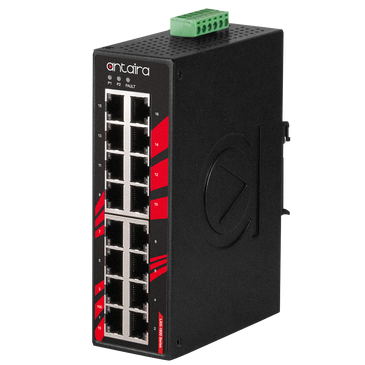

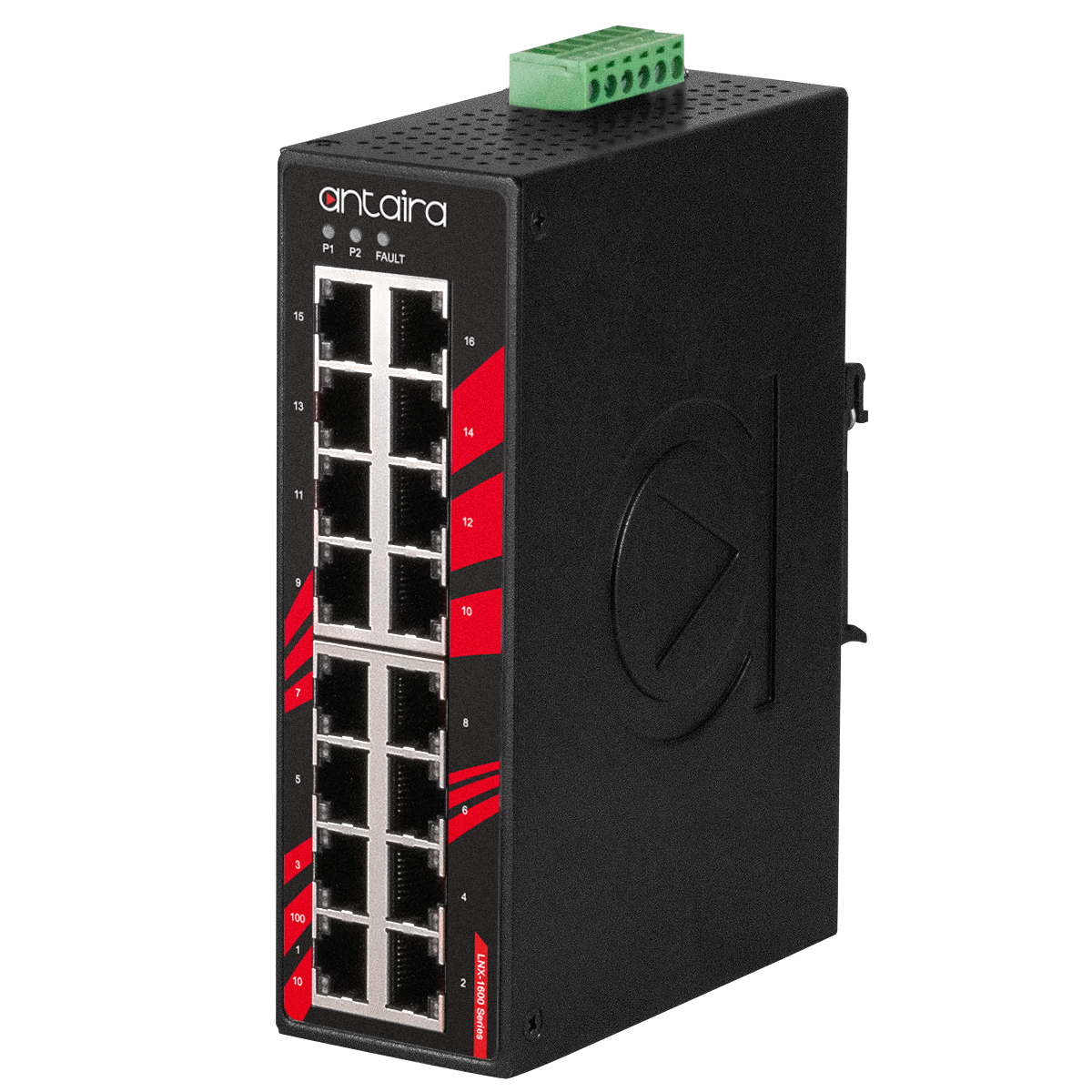

LNX-1600 | 16-Port Industrial Unmanaged Ethernet Switch | w/16*10/100Tx | Antaira

16-Port Industrial Unmanaged Ethernet Switch | w/16*10/100Tx

Antaira Technologies’ LNX-1600 is an industrial unmanaged Ethernet switch designed with 16*10/100 fast Ethernet ports. It is IP30 rated and DIN-Rail mountable making it ideal for applications that demand large port counts in a confined area; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, intelligent transportation systems, or anywhere an industrial Ethernet switch that need to be enclosed in a confined area.The LNX-1600 industrial switch has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. The industrial switch also has a dual power input support of 12~48VDC. This industrial switch has the standard operating temperature model -10˚C to 65˚C.

Features

• Supports 16*10/100Tx Fast Ethernet
• Store-and-Forward Switching Architecture
• Redundant Power Input Design: 12~48VDC
• IP30 Rugged Metal Case Design
• DIN-Rail and Wall Mount Support
• Operating Temperature Range - STD: -10° to 65°C
• 5-Year Warranty

Included

• DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
• LNX-1600
• Quick Installation Guide
• RJ45 dust cover set
• Wall mounting bracket set with screws
