LNX-0602-M-T | 6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (SC) Mulit-mode 2Km | EOT (-40°C - 75°C) | Antaira

6-Port Industrial Unmanaged Ethernet Switch, w/2*100Fx (SC) Mulit-mode 2Km, EOT (-40°C - 75°C)

Brand: AntairaSKU: LNX-0602-M-T

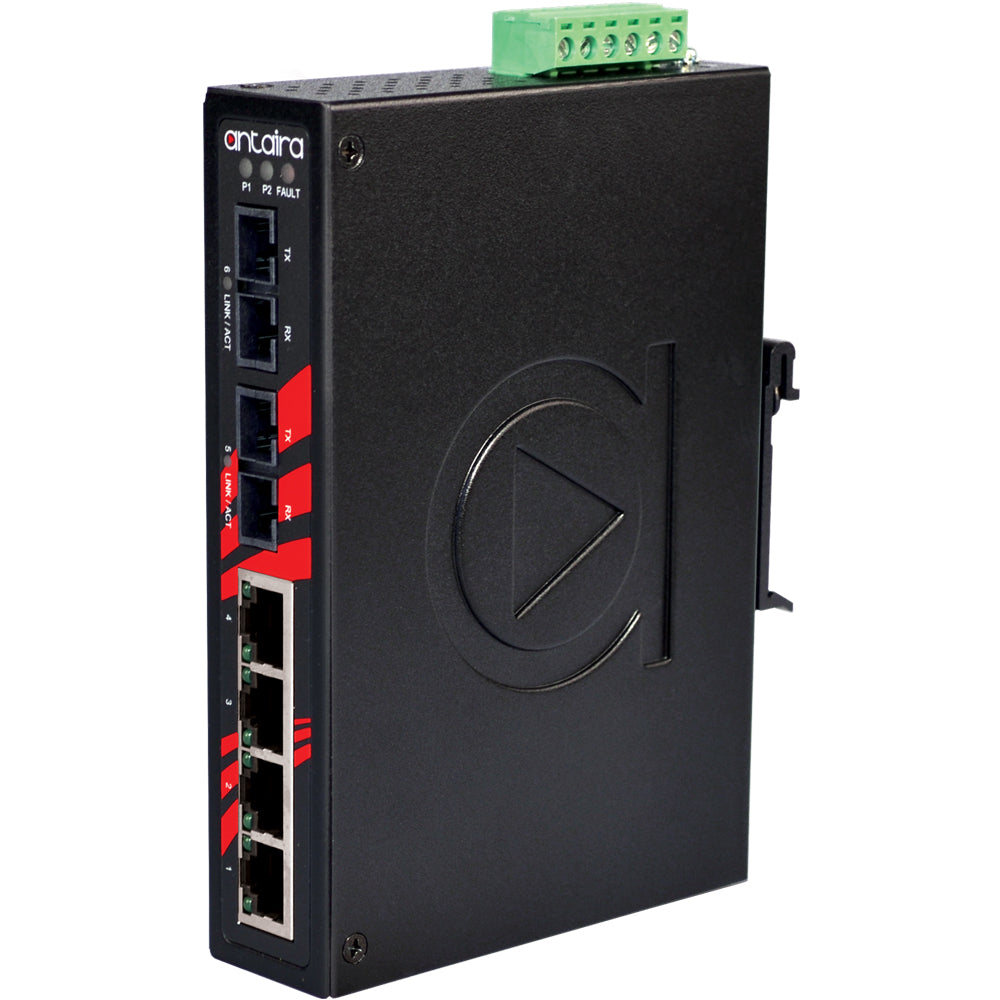

Antaira | LNX-0602-M-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNX-0602-M-T

Overview Details for LNX-0602-M-T

6-Port Industrial Unmanaged Ethernet Switch | w/2*100Fx (SC) Mulit-mode 2Km | EOT (-40°C - 75°C)

Antaira’s LNX-0602 series of switches are smart 6-port Industrial Unmanaged Ethernet Switches supporting 4-Port 10/100Tx Fast Ethernet and 2-Port 100Fx of SC or ST type connector and support Multi-mode in 2Km, or Single-mode in 30Km.The LNX-0602 series of industrial switches support 12~48VDC power inputs. These industrial switches offer an Extended Operating Temperature model (w/-T) which supports -40°C ~ 75°C. These industrial Ethernet switches also support IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network.In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Features

  • Network broadcast storm protection
  • 4-Port 10/100Tx Fast Ethernet
  • 2-Port 100Fx SC type connector (Multi-mode)
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 2K MAC Address Table
  • Surge Protection: 2,000 VDC support
  • ESD Protection: 6,000 VDC support
  • UL Class I, Division 2 Certified
  • Redundant Power Input Design – 12~48VDC
  • Built-in 1 relay output for Port Break Alarm
  • IP30 Rugged Aluminum Case Design
  • DIN-Rail and Wall Mount support
  • Operating Temperature range: -40° to 75° C
  • 5-Year Warranty

    Included

    • LNX-0602-M-T
    • Mounting Brackets

    Specifications

    Ambient Relative Humidity
    5 to 95%, (non-condensing)
    Certifications
    FCC, CE, UL/cUL 508, Class 1 Div 2
    Connection
    1 removable 4-contact terminal block
    Dimensions
    30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.)
    EMI
    FCC Class A
    EMS
    EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8;EN6100-6-2; EN6100-6-4
    Fiber Port
    2*100Fx SC type connector;Multi-mode (2Km) - 50/125um ~ 62.5/125um
    Flow Control
    IEEE 802.3x flow control, back pressure flow control
    Free Fall
    IEC60068-2-32
    Green
    RoHS Compliant
    Housing
    Metal, IP30 protection
    Input Voltage
    12~48VDC, Redundant Input
    MAC Table Size
    2K
    Mounting
    DIN-Rail mounting, wall mounting (optional)
    Operating Temperature
    EOT: -40° to 75° C (-40° to 167° F)
    Overload Current Protection
    Slow-Blown Fuse
    Power Consumption
    7.5 Watts
    Processing Type
    Store and Forward
    Reverse Polarity Protection
    Yes
    RJ45 Ports
    10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection;4*10/100Tx
    Shock
    IEC60068-2-27
    Standards
    IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3x Flow Control and Back-Pressure
    Storage Temperature
    -40°C ~ 85°C (-40°F ~ 185°F)
    Switching Architecture
    Back-Plane (Switching Fabric): 1.0Gbps;Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes
    Technology Protocol
    CSMA/CD
    Transfer Rate
    14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port
    Vibration
    IEC60068-2-6
    Warranty
    5 Years
    Wavelength
    1310nm (Multi-mode)
    Weight
    Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs
