INJ-0200G-60-24-T | Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT: -40°C ~ 75°C | Antaira
Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT: -40°C ~ 75°C

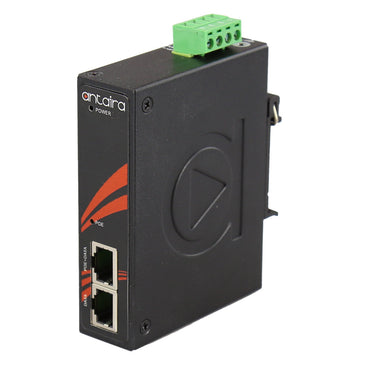

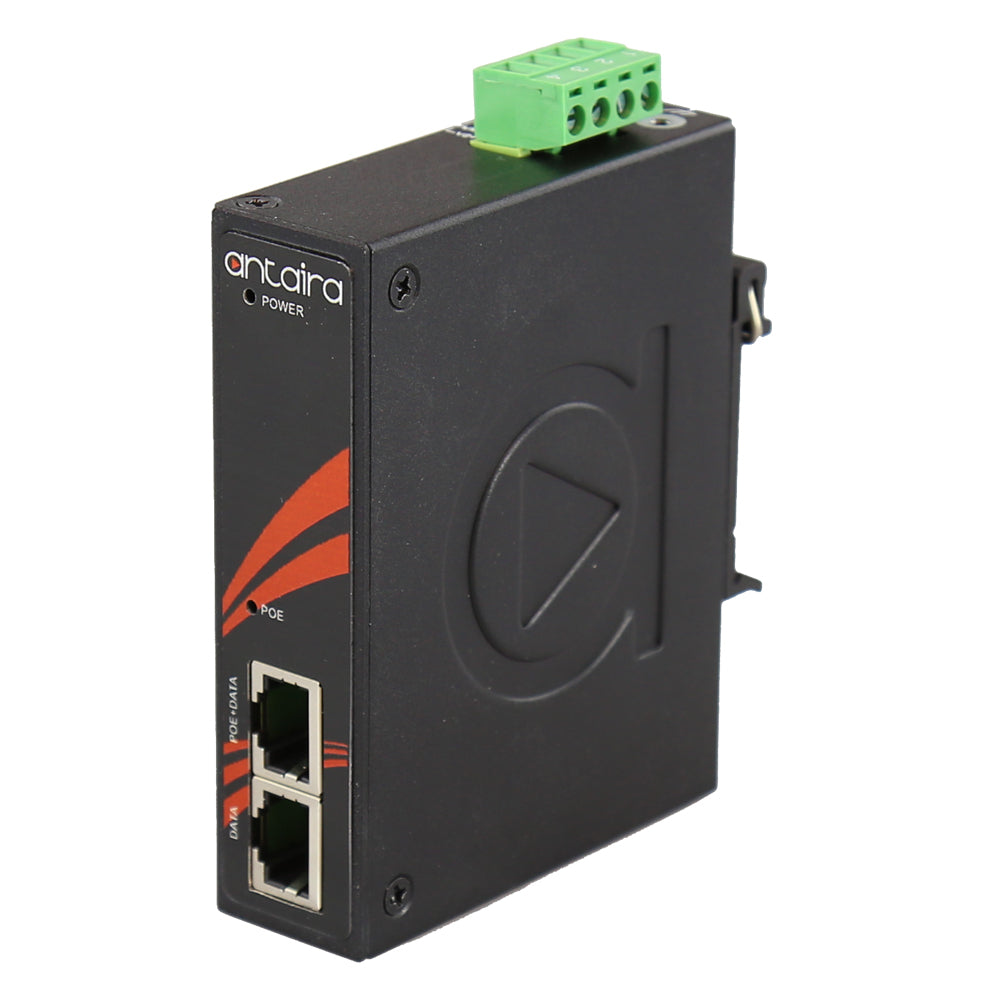

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to INJ-0200G-60-24-T
Documents and manuals
Antaira INJ-0200G-60-24-T Documents
Overview
Details for INJ-0200G-60-24-T
Industrial IEEE 802.3bt Gigabit Type 3 4PPoE Injector; EOT: -40°C ~ 75°C
Antaira Technologies’ INJ-0200G-60-24-T is an Industrial high-power IEEE 802.3bt Type 3 Power over Ethernet (PoE) injector backwards compatible with previous IEEE 802.3af/at standards. By utilizing multiple pairs of pins on the RJ45 cable this Industrial grade PoE injector is capable of providing up to 60 Watts of power to end devices. Each port supports 10/100/1000Tx for both power in and data out.The INJ-0200G-60-24-T injector is IP30 rated, DIN-rail mountable, and supports an extended temperature of -40°C to 75°C, making it ideal for outdoor or harsh industrial applications.Features
- 10/100/1000 PoE Injector
- IEEE 802.3af/at/bt 60 watts compliant
- 12-24 VDC 30 watts on PoE port
- 24-48 VDC 60 watts on PoE port
- Provide data and power over Ethernet to Power Device
- Allow Power Input 12-48 VDC
- Wide Operating Temperature
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
Included
- INJ-0200G-60-24-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5% to 95%, (non-condensing)
- Certifications
- FCC, CE
- Dimensions
- 26 x 95 x 75 mm (W x H x D)
- EMI
- CE, FCC Class A;EN61000-6-4, EN61000-6-2, EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8 (Magnetic Field)
- Ethernet Port
- 2*10/100/1000BaseT(X);(1*Data IN, 1*PoE OUT)
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 9~48VDC, Power Inputs
- LED Indicators
- Power and PoE
- Max. PoE Power Budget
- 60Watts
- Mounting
- DIN-Rail Mounting, Wall Mounting
- Operating Temperature
- EOT: -40°C ~ 75°C
- Overload Current Protection
- Present
- PoE Port Pin Assignment
- V+ for pin 3, 4, 5, 6;V- for pin 1, 2, 7, 8
- PoE Power Output
- 60W max. per PoE port
- Power Connection
- 4-pin terminal block
- Power Consumption
- 5Watts for system
- Reverse Polarity Protection
- Present
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT(X);IEEE 802.3af/at/bt Power over Ethernet
- Storage Temperature
- -40°C ~ 85°C
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 0.60 lbs.;Shipping: 1.0 lbs.
