INJ-C201G-bt-24-T | Industrial Gigabit PoE++ Injector - 1*10/100/1000Base-T(X) with PoE-PSE (90W/Port) and 1*10/100/1000Base-T(X) | Booster Version | 9~55VDC; EOT: -40°C to 75°C | Antaira
Industrial Gigabit PoE++ Injector - 1*10/100/1000Base-T(X) with PoE-PSE (90W/Port) and 1*10/100/1000Base-T(X), Booster Version, 9~55VDC; EOT: -40°C to 75°C

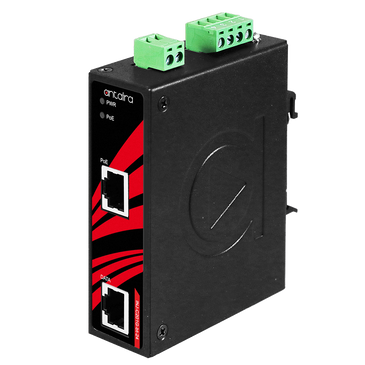

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to INJ-C201G-bt-24-T
Documents and manuals
Antaira INJ-C201G-bt-24-T Documents
Overview
Details for INJ-C201G-bt-24-T
Industrial Gigabit PoE++ Injector - 1*10/100/1000Base-T(X) with PoE-PSE (90W/Port) and 1*10/100/1000Base-T(X) | Booster Version | 9~55VDC; EOT: -40°C to 75°C
Antaira Technologies’ INJ-C201G-bt-24-T, solve the problem simply by deploying data and power from non-PoE switch and power input to the PD device. PoE injector is a brilliant low-cost solution for the case that only one side of devices is supporting PoE function. Therefore, INJ-C201G-bt-24-T will be your best choice to deal with the lack of PoE function cases.INJ-C201G-bt-24-T support low voltage 9VDC model with power booster technology, ensuring full 90W PoE output, for better usage in the automation industry. INJ-C201G-bt-24-T with fan-less design, besides extending surely apply to various industrial application, it works perfectly in polarized temperature from -40°C to 75°C, and undoubtedly becomes your best option in the industrial market.Features
- Supports 10/100/1000Tx for PoE & Data Out
- IEEE 802.3af/at/bt Compliant PoE
- Provide Data and Power over Ethernet to Power Device
- Provides up to 90 Watts on PoE Port
- Provided power booster technologies for low voltage power inputs
- Redundant 9~55VDC power inputs design
- IP30 Protection
- Operating Temperature Range – -40°C to 75°C
- DIN-Rail or Wall Mountable
- 5-Year Warranty
Included
- DC cable - 18 AWG & DC jack 5.5 x 2.1mm
- INJ-C201G-bt-24-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Compliance
- NEMA TS1/TS2
- Dimensions
- 30 x 95 x 75 mm (W x H x D)
- EMI
- FCC Part 15 Subpart B Class A,;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2, IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 2*10/100/1000BaseT(X);(1*Data IN, 1*PoE OUT)
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 9~55VDC Redundant Input
- LED Indicators
- Power, PoE
- Mounting
- DIN-Rail Mounting, Wall Mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -40°C to 75°C
- Overload Current Protection
- Present
- Poe Pin Assignment
- V-, V-, V+, V+, for pin 1, 2, 3, 6;;V+, V+, V-, V-, for pin 4, 5, 7, 8;*Support Modes: Mode A, Mode B, 4-Pair Mode
- PoE Power Budget
- 60W@9VDC;90W@12-55VDC
- Power Connection
- 1 removable 4-contact terminal block
- Relay Contact
- 24VDC, 1A resistive
- Reverse Polarity Protection
- Present
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10BaseT Ethernet;IEEE 802.3u 100BaseTX Fast Ethernet;IEEE 802.3ab 1000BaseT(X);IEEE 802.3af/at/bt Power over Ethernet
- Storage Temperature
- -40°C to 85°C
- System Power Consumption
- 1.6W
- Transfer Rate
- 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 0.79 lb.;Shipping: 1.14 lbs.
