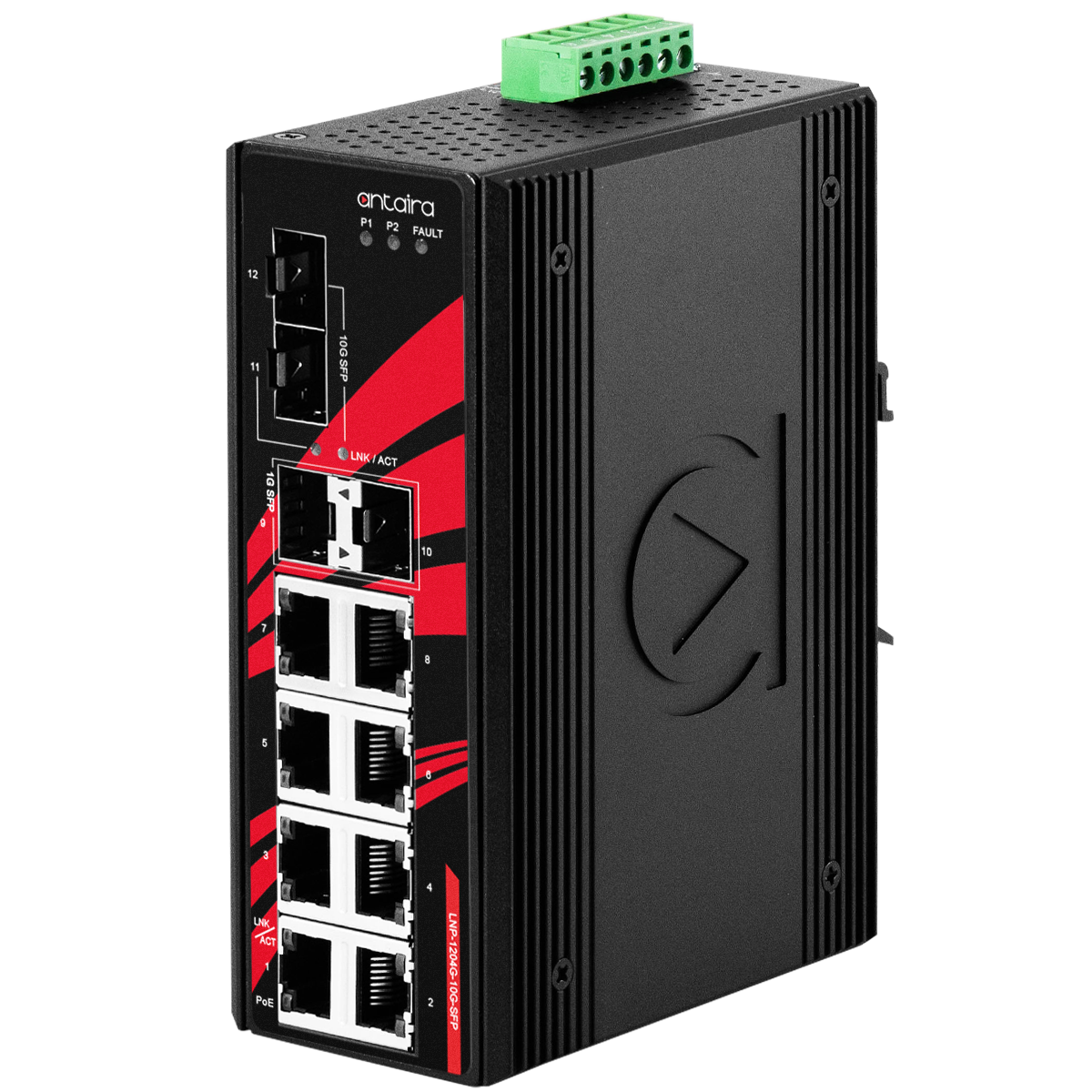

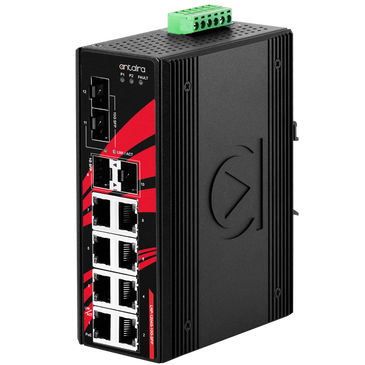

LNP-1204G-10G-SFP | 12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 8*10/100/1000Tx (30W/Port) | 2*1G SFP Slots | and 2*10G SFP+ Slots | Antaira
12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 8*10/100/1000Tx (30W/Port), 2*1G SFP Slots, and 2*10G SFP+ Slots
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LNP-1204G-10G-SFP
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira LNP-1204G-10G-SFP Documents
Overview
Details for LNP-1204G-10G-SFP
12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch | with 8*10/100/1000Tx (30W/Port) | 2*1G SFP Slots | and 2*10G SFP+ Slots
Antaira Technologies’ LNP-1204G-10G-SFP are industrial gigabit PoE+ unmanaged Ethernet switches featuring 8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1204G-10G-SFP has 2*1G SFP slots and 2*10G SFP+ slots that provide options for long-distance fiber connections. These Ethernet switches are designed with high EFT and ESD protection and support standard operating temperatures from -40° to 65°C.The LNP-1204G-10G-SFP are IP30 rated and DIN-rail mountable. They also provide Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.Features
- Supports 8*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, 2*1G SFP Slots, and 2*10G SFP+ Slots
- Store-and-Forward Switching Architecture
- 60Gbps Back-Plane (Switching Fabric)
- 16K MAC Address Table
- 10Kbytes Jumbo Frame Support
- Redundant Power Input Design: 48~55VDC
- Bult-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Operating Temperature Range: -40°C~65°C
- 5-Year Warranty
Included
- DC Cable - 18 AWG & DC Jack 5.5 X 2.1 mm
- LNP-1204G-10G-SFP
- Quick Installation Guide
- RJ45 dust cover set
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Certifications
- FCC, CE, UL 61010-1, 61010-2-201
- Dimensions
- 54 x 142 x 99 mm
- EMI
- FCC Part 15 Subpart B Class A;CE EN55032/EN61000-6-4 Class A
- EMS
- CE EN55035/EN61000-6-2 Class A;IEC61000-4-2,3,4,5,6,8
- Ethernet Port
- 8*10/100/1000Tx (PSE: 30W/Port);Auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
- Flow Control
- IEEE 802.3x back pressure flow control
- Free Fall
- IEC60068-2-32
- Green
- RoHS Compliant
- Housing
- Metal, IP30 protection
- Input Voltage
- 48~55VDC, Redundant Input
- Jumbo Frame
- 9.6Kbytes
- LED Indicators
- System: Power 1, Power 2, Fault;Ethernet Ports: On-Link/Flash-data transmitting;PoE: On-connected to PD devices;SFP: Link/Active
- MAC Table Size
- 16K
- Max PoE Power Budget
- 240W
- Mounting
- DIN-Rail mounting, Wall mounting
- Network Cable
- 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m);100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m);1000BaseTX: 4-pair UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m)
- Operating Temperature
- -40°C to 65°C
- Overload Current Protection
- Present
- Packet Buffer
- 8Mbits
- PoE Pin Out
- V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)
- PoE Power Output
- 30W max. per PoE port
- Power Connection
- 1 removable 6-contact terminal block
- Power Reverse Polarity Protection
- Present
- Processing Type
- Store and Forward
- Protocols
- CSMA/CD
- Relay Contact
- 24VDC, 1A resistive
- SFP Port
- 2*1G SFP Slots;2*10G SFP+ Slots
- Shock
- IEC60068-2-27
- Standards
- IEEE 802.3 10Tx Ethernet;IEEE 802.3u 100Tx Fast Ethernet;IEEE 802.3ab 1000Tx Gigabit Ethernet;IEEE 802.3z 1000X Gigabit Fiber;IEEE 802.3ae 10 Gigabit Ethernet;IEEE 802.3af/at Power over Ethernet;IEEE 802.3x Flow Control
- Storage Temperature
- -40°C ~ 85°C
- Switching Architecture
- Back-Plane (Switching Fabric): 60.0Gbps
- System Power Consumption
- 10.7W
- Transfer Rate
- 14,880pps for 10Base-T Ethernet;148,800pps for 100Base-T Fast Ethernet;1,488,000pps for 1000Base-T Gigabit Ethernet;14,880,000pps for 10 Gigabit Ethernet Port
- Vibration
- IEC60068-2-6
- Warranty
- 5 Years
- Weight
- Unit: 2.52 lbs.;Shipping: 3.13 lbs.
