AIM2 | Analog Input | Resistive Input | to Analog Output Interface Module | ACI
Analog Input, Analog Output, Analog Isolation Module w/ Rescaling
Documents and manuals
ACI AIM2 Documents
Overview
Details for AIM2

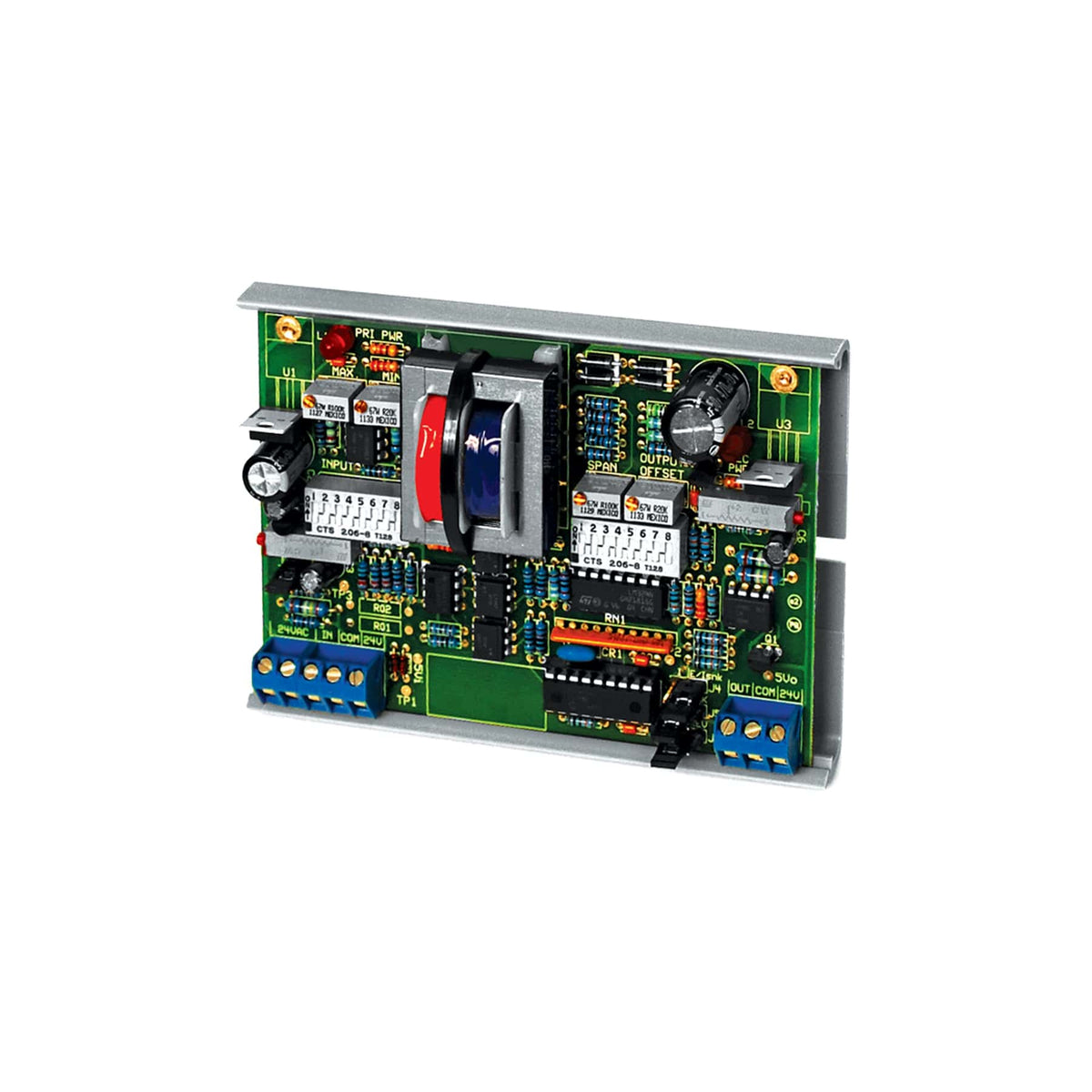

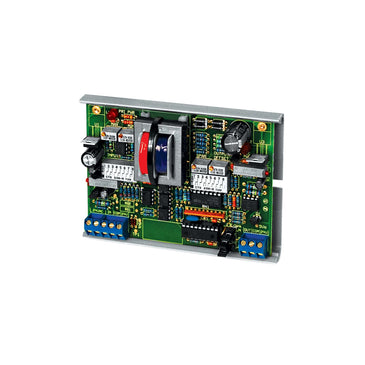

AIM2 | Analog Input | Resistive Input | to Analog Output Interface Module
The AIM2 optically isolates the analog (voltage or current) signal to the device being controlled. It will accept any input signals between 0 and 20 volts, or 0 and 20 mA, and output any signal within those ranges. The AIM2 has preset or adjustable inputs, and preset or adjustable outputs, that can be either voltage or current. The current signals on the input or output, can be either sink or source. The AIM2 requires one external 24 VAC isolation transformer with floating secondary for power. It has an on-board 24 VAC isolation transformer to supply power to the isolated output. The AIM2 is covered by ACI's Two (2) Year Limited Warranty.
- Grounded electric actuator isolation
- Fluorescent light dimmer isolation
- Ground loop isolation
Specifications
Item Number | AIM2 |
Brand | ACI |
Interface | Analog Input to Analog Output |
Interface | Resistive Input to Analog Output |
