AO-BOX-0 | 8 CHANNEL ANALOG OUTPUT MODULE | ACI
8 Channel Analog Output Module, Q-Controller
Documents and manuals
ACI AO-BOX-0 Documents
Overview
Details for AO-BOX-0

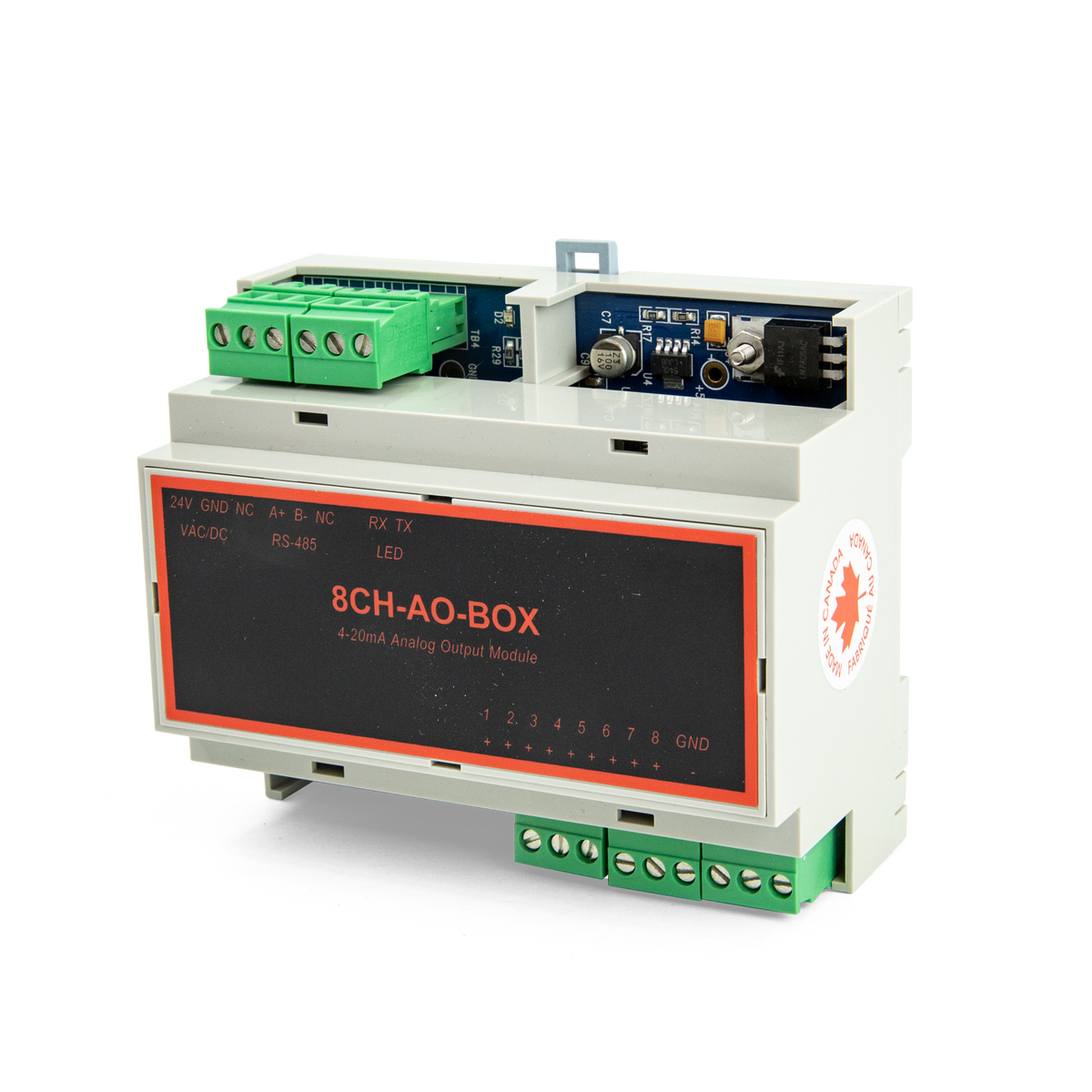

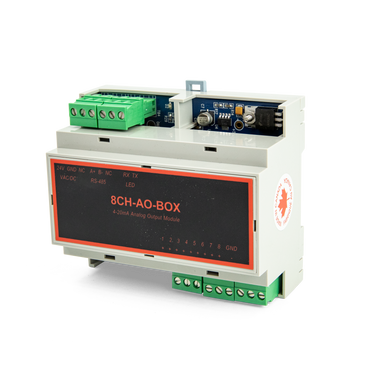

8 CHANNEL ANALOG OUTPUT MODULE
The AO-Box Model is 12-bit analog output modules designed for use with the QController control system. Each AO-Box module has 8x 4-20 mA output channels that provide 4-20mA signal as inputs to other host control devices.
The AO-Box and other IO-Box modules connect and communicate via a RS-485 2-wire connection to the Q-Controller. The QController supports any combination of the IO Box, the AO-Box can be up to 16 modules,allowing a total of 128 4-20mA analog signals
to be output via a single Q-Controller. All AO-Box configuration information is strored in Q-Controller and the 4-20mA calibration data is stored locally within the module, so replacement modules do not need to be configured and calibrated. The AO-Box high density packaging, removable terminal block and DIN rail mounting saves time and panel space. The module snaps easily onto standard top hat (T) profile DIN rail.
Specifications
Item Number | AO-BOX-0 |
Brand | ACI |
