PAM-1 | Relay | 10 Amp | Coil: 24 VAC or VDC / 120 VAC | ACI
Multi-Voltage Control Relay, 24 VDC, 24 VAC, & 120 VAC, Form 1C (SPDT), LED
Documents and manuals
ACI PAM-1 Documents
Overview
Details for PAM-1
PAM-1 | Relay | 10 Amp | Coil: 24 VAC or VDC / 120 VAC
Description

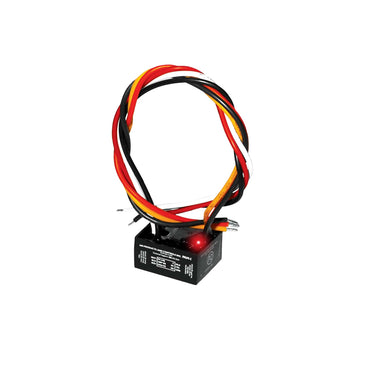

Air Products & Controls, Inc. PAM-1, PAM-2, and PAM-4 MultiVoltage Relay Modules are encapsulated multi-voltage devices. The PAM-1 relay provides 10.0 Amp Form-C contacts and may be energized by one of three input voltages: 24 VAC, 24 VDC, or 115 VAC. The PAM-2 relay provides 7.0 Amp Form-C contacts and may be energized by one of two input voltages: 12 VDC or 24 VDC. The PAM-4 relay provides 10.0 Amp Form-C contacts and may be energized by a wide voltage range from 9 VDC to 40 VDC.
A red LED is provided on both models. When illuminated, it indicates the relay coil is energized.
Either model may be mounted by using the double-sided adhesive tape, the self-drilling screw, or by placing loosely in a backbox.
PAM-1, PAM-2, and PAM-4 Relay Modules are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, temperature control, fire alarm, security, energy management, and lighting control systems.
Specifications
Item Number | PAM-1 |
Brand | ACI |
Coil | 120VAC |
Coil | 24VAC/DC |
Enclosed | Encapsulated |
Track Mounted | No |
Type | Pilot |
