AI-BOX-0 | 8 CH. ANALOG INPUT | ACI
8 Channel Analog Input Module, Q-Controller
Documents and manuals
ACI AI-BOX-0 Documents
Overview
Details for AI-BOX-0

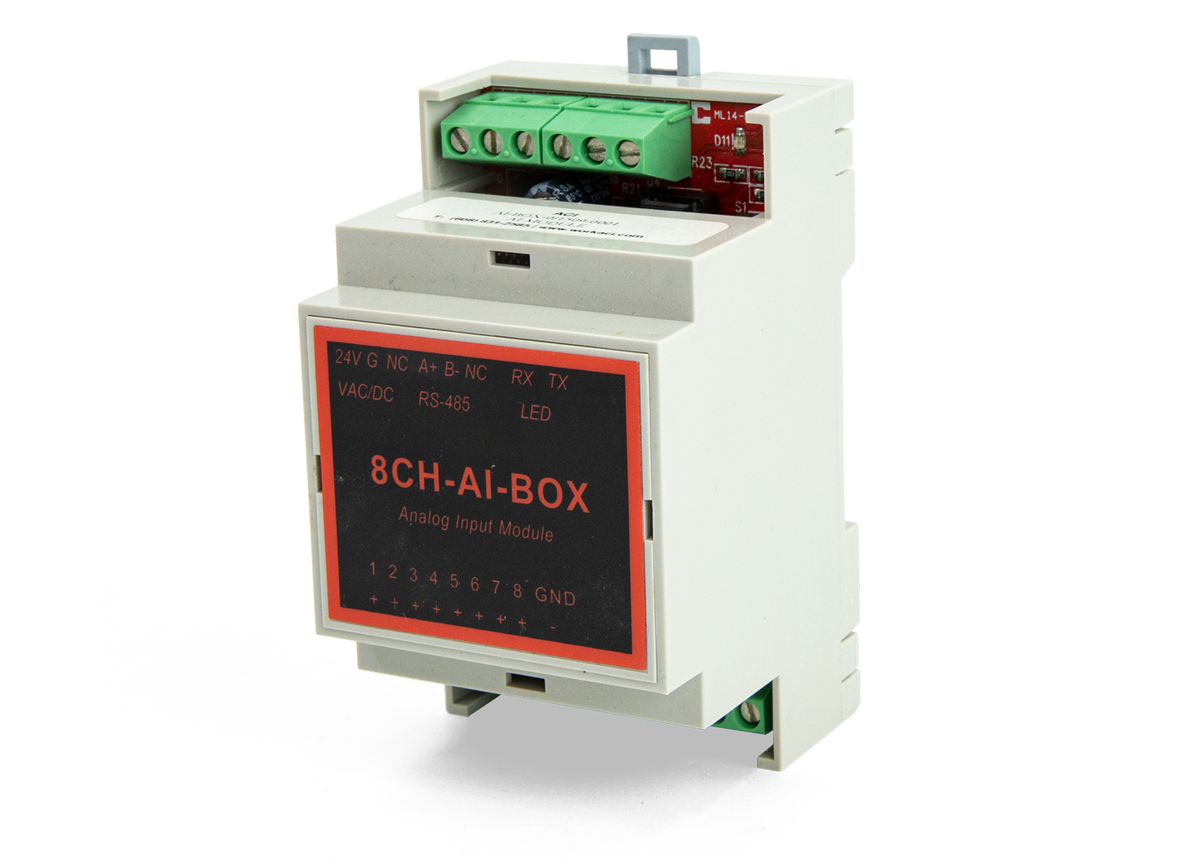

8 CH. ANALOG INPUT
The AI-Box Model is 12-bit analog input modules designed for use with the Q-Controller control system. The modules provide a means of high-density signal measurement for data-acquisition applications. The AI-Box module accepts 8 channels 4-20 mA process signals. The AI-Box and other IO-Box modules connect and communicate via a RS-485 2-wire connection to the Q-Controller. The Q-Controller supports any combination of the IO Box, the AI-Box can be up to 16 modules, allowing a total of 128 4-20mA analog signals to be monitored via a single Q-Controller. All AI-Box configuration information is stored in Q-Controller and the 4-20mA calibration data is stored locally within the module, so replacement modules do not need to be configured and calibrated. The AI-Boxs high-density packaging, removable terminal block and DIN rail mounting saves time and panel space. The module snaps easily onto standard top hat (T) profile DIN rail.
Specifications
Item Number | AI-BOX-0 |
Brand | ACI |
