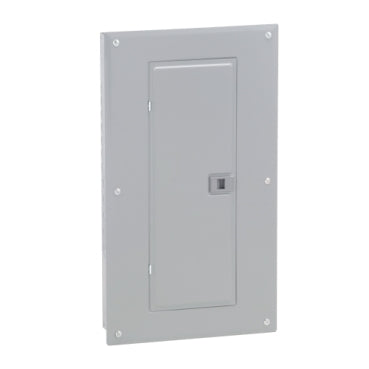

HOM2040L125PC | Homeline, LC, 125 A, 120/240 V, 1 PH, MLO, PoN, 20 SP, N1, combo | Square D by Schneider Electric

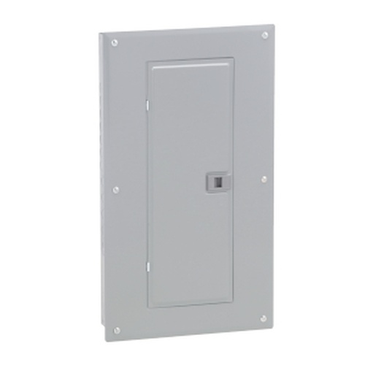

Square D | HOM2040L125PC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM2040L125PC

Documents and manuals

Square D HOM2040L125PC Documents

Overview

Details for HOM2040L125PC

Homeline, LC, 125 A, 120/240 V, 1 PH, MLO, PoN, 20 SP, N1, combo

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1/0 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 26.02 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.

Specifications

Product Type
Load Center
Marketing Trade Name
Homeline
Load Center Type
Main lugs
Rated Current
125 A
Number of Spaces
20
Maximum Number of Single Pole Circuits
40
Enclosure Rating
NEMA 1 indoor;NEMA 3R outdoor
Cover Type
Combination flush/surface cover
Electrical Connection
Lugs
Max Short Circuit Current Rating
10 kA
Maximum Number of Tandem Breakers
20
Number of Phases
1 phase
Voltage Rating
120/240 V AC
Wire Size
AWG 6...AWG 2/0 aluminium;AWG 6...AWG 1 copper;AWG 6...AWG 1/0 copper
Ground Bar
Grounding bar (ordered separately)
Wiring Configuration
3-wire
Busbar Material
Tin plated aluminium busbar
Enclosure Material
Welded sheet steel
Surface Finish
Baked enamel Gray
Box Number
8
Height
26.02 in (661 mm)
Depth
3.74 in (95 mm)
Width
14.25 in (362 mm)
Ambient Air Temperature for Operation
23 °F (-5 °C);104 °F (40 °C)
Product Certifications
UL listed file E-6294
Category
00045-HOM LC&CVR;12-42 CKT;NEMA1
Discount Schedule
DE3C
GTIN
785901860693
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Package 1 Length
28.90 in (73.406 cm)
Number of Units in Package 1
1
Package 2 Width
40.00 in (101.6 cm)
Package 2 Height
38.70 in (98.298 cm)
Package 2 Weight
454.00 lb(US) (205.931 kg)
Package 1 Width
16.00 in (40.64 cm)
Package 1 Height
5.60 in (14.224 cm)
Package 1 Weight
23.51 lb(US) (10.664 kg)
Number of Units in Package 2
18
Unit Type of Package 2
PAL
Package 2 Length
48.00 in (121.92 cm)
