Sensor: Room Temp, Setpoint Dial, Override, Modular, Almond

These compact, stylish, and economical room temperature sensors are designed for use with KMC digital controllers. They incorporate a 10,000 ohm (@ 77° F) thermistor for precise, stable temperature sensing. The durable, low-profile, thermostat-style cover is visually appealing. These sensors may be surface mounted on a hollow wall or (using an HMO-6036 universal backplate) to a 2 x 4 in. electrical box.

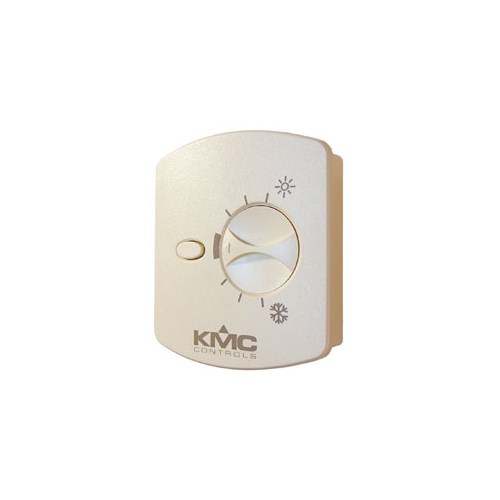

STE-6017 models include a rotary setpoint dial with warmer/cooler icons. Pushing the button on the front allows selection of an override condition.

They have an RJ-45 modular jack for quick connections. For connecting to KMC Conquest BAC-59xx and BAC-9xxx controllers, use a standard Ethernet patch cable, such as a HSO-9001 (50 feet), HSO-9011 (50 feet, plenum-rated), or HSO-9012 (75 feet, plenum-rated) cable. For connecting to KMC KMDigital controllers and KMC legacy BAC-58×1 and BAC-7xxx BACnet controllers, use a (custom) KMD-5693 (25 feet), KMD-5694 (50 feet), or KMD-5695 (75 feet) cable.

A four-pin EIA-485 (formerly RS-485) data port on the cover’s underside provides an easy temporary computer connection to the network, using a:

• BAC-5051E router and HPO-5551 router technicians cable for BACnet networks.
• KMD-5576 USB-to-485 converter for KMDigital networks.
