BAC-5051E | Router: BACnet, IP/Enet/Single MSTP | KMC (OBSOLETE)
Router: BACnet, IP/Enet/Single MSTP

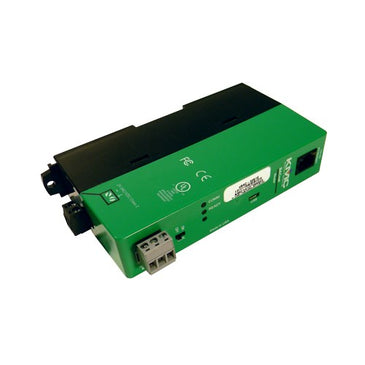

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BAC-5051E
Overview Details for BAC-5051E
DISCONTINUED AND REPLACED WITH BAC-5051AE
Router: BACnet, IP/Enet/Single MSTP
The KMC Controls BAC-5051E is a multi-port BACnet router. This compact router is powerful enough for heavy network traffic and small enough to use as a control technician’s service tool. Features include:
- VAV Airflow Balancing Use with an Internet browser as an airflow balancing tool for BAC-8000 and BAC-9000 series VAV controllers.
- Zone Configuration Use the router to set up a BAC-120063CW-ZEC zoning Flexstat.
- Routing Install the BAC-5051E for BACnet IP, Ethernet, and MS/TP routing. The IP routing is fully compliant with BACnet Standard 134-2012, Annex J.
- Browser Configuration Configure the BAC-5051E using only an Internet browser. No special software to learn or load.
- Flexible Mounting Two mounting choices for permanent installations–DIN rails or surface mount.
- Diagnostics Embedded metrics include: total number of devices, frame counts, frames in error, data frames, duplicate MAC addresses, token passing, and poll-for-master count.
- Automatically Learns Networks Detects and configures routing for the actual discovered networks.
- Enable and Disable Routing Use the router as a diagnostic tool to monitor traffic without routing traffic.
- BTL Listed Meets the BACnet Testing Labs B-RTR profile for a BACnet router.
As a service tool, see the KMD-5576 USB communicator instead for network access to a computer running:
- BACstage for BACnet.
- WinControl, TotalControl, or KMC Connect for KMDigital networks.
Specifications
- BACnet Profile
Router
- Brand
KMC Controls
- Connectivity
IP, MS/TP
