VG18A5PZ+92NAGC | 3W 6" CV348 SR 24V; 3-WAY 6 IN FLANGE CV348; CONTROL PORT OPEN; 24 VAC/VDC; FLOATING | Johnson Controls

Johnson Controls | VG18A5PZ+92NAGC

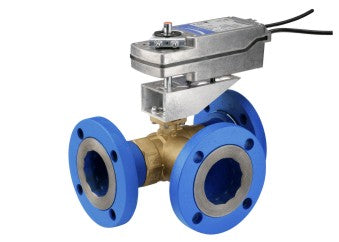

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG18A5PZ+92NAGC

Documents and manuals

Johnson Controls VG18A5PZ+92NAGC Documents

Overview

Details for VG18A5PZ+92NAGC

3W 6" CV348 SR 24V; 3-WAY 6 IN FLANGE CV348; CONTROL PORT OPEN; 24 VAC/VDC; FLOATING


  • 6" 3-Way Characterized Control Valve - Narrow Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0°F to 284°F
  • CV 350.0/180.0
  • 24 VAC/VDC
  • Floating Point
  • Spring Return - Normally Open
  • 177 in-lb Torque
  • 48 in. Halogen Free Cable
  • 2 x SPDT
  • ANSI 150 Flange
  • 150 sec Runtime
  • Close-Off 50 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 300.00 - 399.99

Specifications

Item Number VG18A5PZ+92NAGC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Floating
Control Valves Type Ball Valve
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 3-Way w/ Electric Actuator
Valve Size 6 - 3-Way
Voltage 24V
