VG18A5GT+924AGA | 3W 2.5 CV74 M9124 EL; 3W 2.5 CV74 M9124 EL | Johnson Controls
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Johnson ControlsSKU: VG18A5GT+924AGA

Web Price:

$1,000.96
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

VG18A5GT+924AGA | 3W 2.5 CV74 M9124 EL; 3W 2.5 CV74 M9124 EL | Johnson Controls

Johnson Controls | VG18A5GT+924AGA
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG18A5GT+924AGA

Documents and manuals

Johnson Controls VG18A5GT+924AGA Documents

Overview

Details for VG18A5GT+924AGA

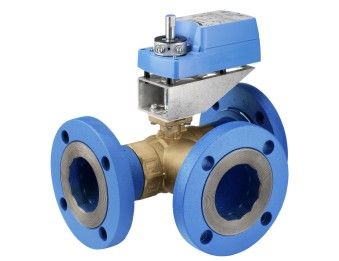

3W 2.5 CV74 M9124 EL; 3W 2.5 CV74 M9124 EL


  • 2 1/2" 3-Way Characterized Control Valve - Large Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0°F to 284°F
  • CV 74.0/47.0
  • 24 VAC/VDC
  • On/Off & Floating Point
  • Non-Spring Return
  • 210 in-lb Torque
  • 0
  • ANSI 150 Flange
  • 115 to 175 sec Runtime
  • Close-Off 50 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 070.00 - 079.99

Specifications

Item Number VG18A5GT+924AGA
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Floating
Control Valves Type Ball Valve
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Non-Spring Return
SubCategory Ball 3-Way w/ Electric Actuator
Valve Size 2.5" - 3-Way
Voltage 24V
