VG12A5MW+924GGA | 2W 4" CV185 NSR 24V; 2-WAY 4 IN FLANGE CV185; LAST POSITION; 24 VAC/VDC; PROPORTIONAL | Johnson Controls

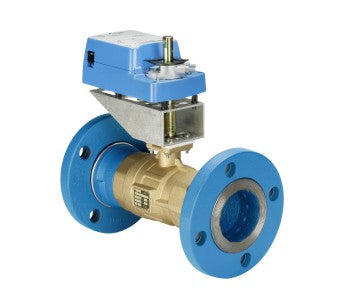

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VG12A5MW+924GGA

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Johnson Controls VG12A5MW+924GGA Documents

Datasheet Installation Instructions More Info

Overview

Details for VG12A5MW+924GGA

2W 4" CV185 NSR 24V; 2-WAY 4 IN FLANGE CV185; LAST POSITION; 24 VAC/VDC; PROPORTIONAL

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

4" 2-Way Characterized Control Valve - Narrow Face-To-Face
Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0?F to 284?F
CV 190.0
24 VAC/VDC
Proportional [0(2) to 10 VDC]
Non-Spring Return
210 in-lb Torque
0
ANSI 150 Flange
115 to 175 sec Runtime
Close-Off 100 psi
Stainless Steel Ball & Stem
NEMA 2

Specifications

Item Number	VG12A5MW+924GGA
Brand	Johnson Controls
Category	Valves & Valve Actuators
Control Input	Modulating
Control Valves Type	Ball Valve
Section	Ball 2-Way w/ Electric Actuator
Section	Valves & Actuators
Spring Return	Non-Spring Return
SubCategory	Ball 2-Way w/ Electric Actuator
Valve Size	4 - 2-Way
Voltage	24V
