VG12A5MW+924AGC | 2W 4" CV185 NSR 24V; 2-WAY 4 IN FLANGE CV185; LAST POSITION; 24 VAC/VDC; FLOATING | Johnson Controls

Johnson Controls | VG12A5MW+924AGC

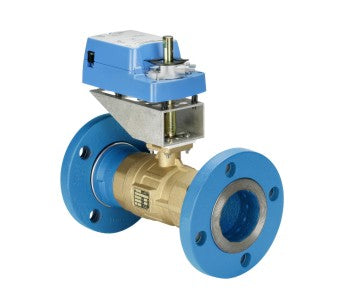

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG12A5MW+924AGC
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Johnson Controls VG12A5MW+924AGC Documents

Datasheet Installation Instructions More Info

Overview

Details for VG12A5MW+924AGC

2W 4" CV185 NSR 24V; 2-WAY 4 IN FLANGE CV185; LAST POSITION; 24 VAC/VDC; FLOATING


  • 4" 2-Way Characterized Control Valve - Narrow Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0?F to 284?F
  • CV 190.0
  • 24 VAC/VDC
  • On/Off & Floating Point
  • Non-Spring Return
  • 210 in-lb Torque
  • 2 x SPDT
  • ANSI 150 Flange
  • 115 to 175 sec Runtime
  • Close-Off 100 psi
  • Stainless Steel Ball & Stem
  • NEMA 2

Specifications

Item Number VG12A5MW+924AGC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Floating
Control Valves Type Ball Valve
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Non-Spring Return
SubCategory Ball 2-Way w/ Electric Actuator
Valve Size 4 - 2-Way
Voltage 24V
