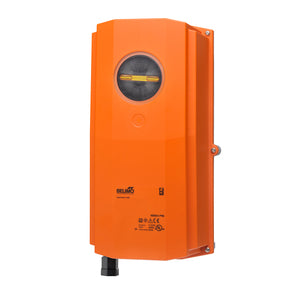

Damper Actuator | 90 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4H | WITH HEATER OPTION
Damper Actuator | 90 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4H
Application
For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. Heater must remain powered at all times to ensure proper actuator operation at colder temperatures.
Operation
The NF..UP N4 series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The NF..UP N4 series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The NF..UP N4 actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.
Specifications
Item Number | NFBUP N4H |
Brand | Belimo |
Actuator Type | Damper |
Control Input | On/Off |
Housing | NEMA 4H |
Spring Return | Spring Return |
Torque | 90 in-lb |
Voltage | 24-240V |
