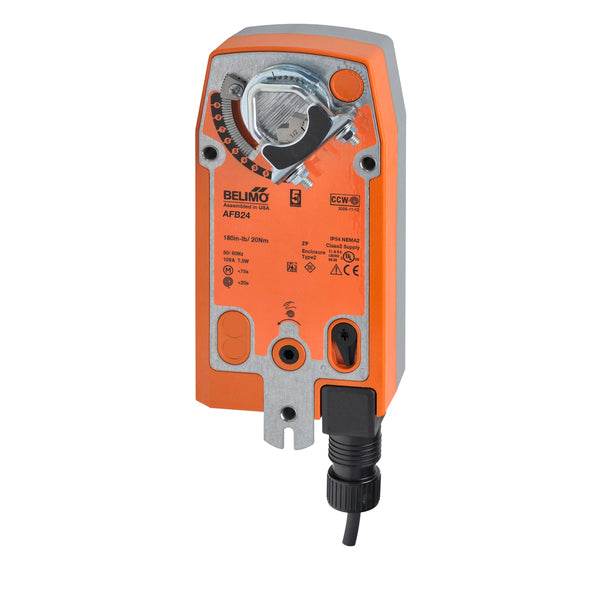

AFB24 | Damper Actuator | 180 in-lb | Spg Rtn | 24V | On/Off | Belimo

Damper Actuator, 180 in-lb [20 Nm], Spring return, AC/DC 24 V, On/Off

Belimo | AFB24
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFB24

Documents and manuals

Overview

Details for AFB24

Damper Actuator | 180 in-lb | Spg Rtn | 24V | On/Off

Application

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two AF’s can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4” diameter shaft and parallel wiring.

Operation

The AF..24 series actuators provide true spring return operation for reliable failsafe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AF..24 series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AF..24 actuator is shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.


Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
On/Off
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2.5 W
Power Consumption (Running)
5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Safety Function
YES
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC/DC 24 V
