LMB24-IP | Damper Actuator | 45 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP | Belimo

Damper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, modulating, Cloud, communicative, Hybrid, BACnet IP Modbus TCP

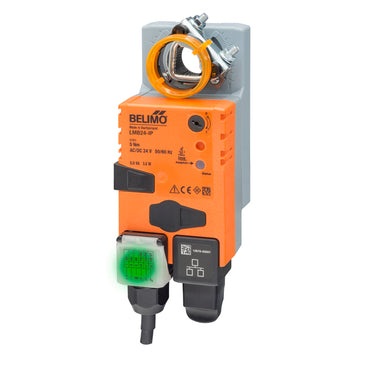

Belimo | LMB24-IP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMB24-IP

Documents and manuals

Belimo LMB24-IP Documents

Overview

Details for LMB24-IP

Damper Actuator | 45 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is controlled via the Belimo Cloud, BACnet/IP or Modbus TCP and drives to the position defined by the control variable. Multiple data points can be written and read via the control interface. Local control mode: the actuator receives an analog control signal from a conventional controller and drives to the control position. In addition, using the Belimo Cloud, BACnet/IP or Modbus TCP, various data points can be read and with the exception of the control signal written to the actuator. This Belimo Cloud connected damper actuator has two universal sensor inputs ready for your innovative HVAC applications. The two universal sensor inputs (passive, active, or contact) serve as an analogue/digital converter for the digital transmission of the sensor value to a higher level system. Selecting the sensor type is accomplished via connection to the integrated web server (RJ45 connection to the web browser) or directly via the Belimo Cloud. The actuators performance and sensor data is recorded locally with 13 months of storage. This data can be used for analytical purposes, downloaded via csv files, or used in your HVAC application.

Specifications

Actuator Type
Non fail-safe
Angle of Rotation
95
Control Type
  • Communicative
  • BACnet IP
  • Cloud
  • Modbus TCP
Degree of Protection
IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection
cable
Manual Override
External push button
Mechanical Interface
Universal shaft clamp 6...20 mm
Power Consumption (Holding)
3 W
Power Consumption (Running)
3 W
Running Time (Motor)
150 s / 95B0
Running Time range (Motor)
70...220 s
Safety Function
NO
Torque
5 Nm
Voltage AC/DC
AC/DC 24 V
