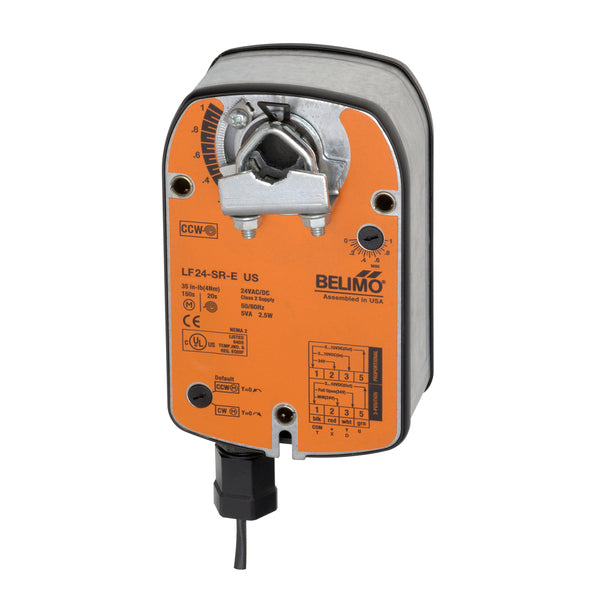

LF24-SR-E US | Damper Actuator | 35 in-lb | Spg Rtn | 24V | Modulating | Belimo

Damper Actuator, 35 in-lb [4 Nm], Spring return, AC/DC 24 V, 2...10 V, modulating

Belimo | LF24-SR-E US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LF24-SR-E US

Documents and manuals

Belimo LF24-SR-E US Documents

Overview

Details for LF24-SR-E US

Damper Actuator | 35 in-lb | Spg Rtn | 24V | Modulating

Application

For fail-safe, modulating control with minimum position setpoint, or three position control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 3/8” up to 1/2” in diameter by means of its universal clamp, 1/2” shaft centered at delivery. For shafts up to 3/4” use K6-1 accessory. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to 24 VAC on wire 2 or 3, which allows the LF24- SR-E US to retrofit or replace Honeywell® M8405A actuators. A 2 to 10 VDC feedback signal is provided for position indication.

Operation

The LF series actuators provide true spring return operation for reliable fail-safe application and positive close-off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The LF series provides 95° of rotation and is provided with a graduated position indicator showing 0 to 95°. The LF24-SR-E US uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor. The microprocessor provides the intelligence to the ASIC to provide a constant rotation rate and to know the actuator’s exact position. The ASIC monitors and controls the brushless DC motor’s rotation and provides a digital rotation sensing function to prevent damage to the actuator in a stall condition. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. Power consumption is reduced in holding mode. See wiring diagrams for LF24-SR-E US for more details on 3-position control.


Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
150 s / 90B0
Safety Function
YES
Torque
35 in-lb [4 Nm]
Voltage AC/DC
AC/DC 24 V
