F765-150SHP+GMB24-MFT-X1 | Butterfly Valve (BFV), 2 1/2", 3-way, ANSI Class150 | Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo
Butterfly Valve (BFV), 2 1/2", 3-way, ANSI Class 150, Cv 146 |Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

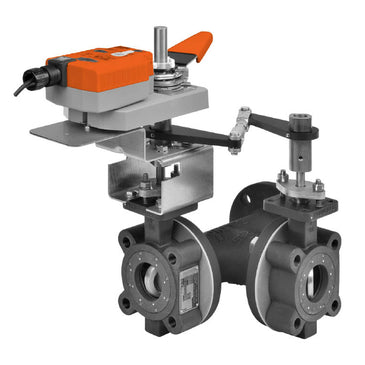

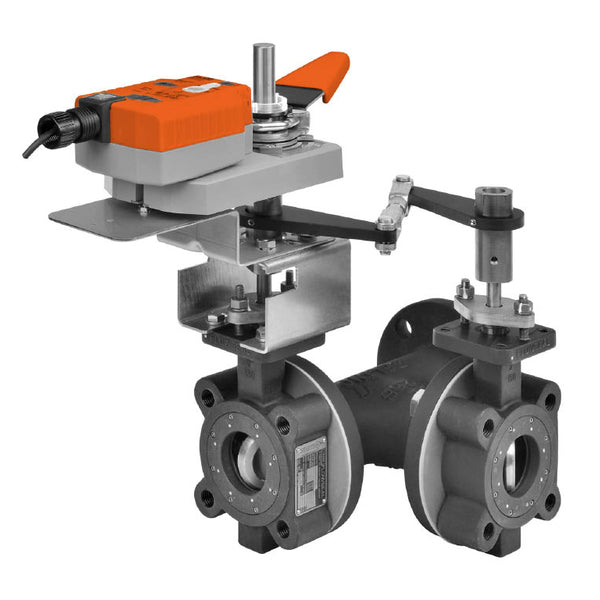

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F765-150SHP+GMB24-MFT-X1
Documents and manuals
Belimo F765-150SHP+GMB24-MFT-X1 Documents
Overview
Details for F765-150SHP+GMB24-MFT-X1
Butterfly Valve (BFV), 2 1/2", 3-way, ANSI Class150 | Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 146
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 4 W
- Running Time (Motor)
- 150 s / 90B0
- Torque
- 40 Nm
- Voltage AC/DC
- AC/DC 24 V
