AFRBUP | Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off | Belimo

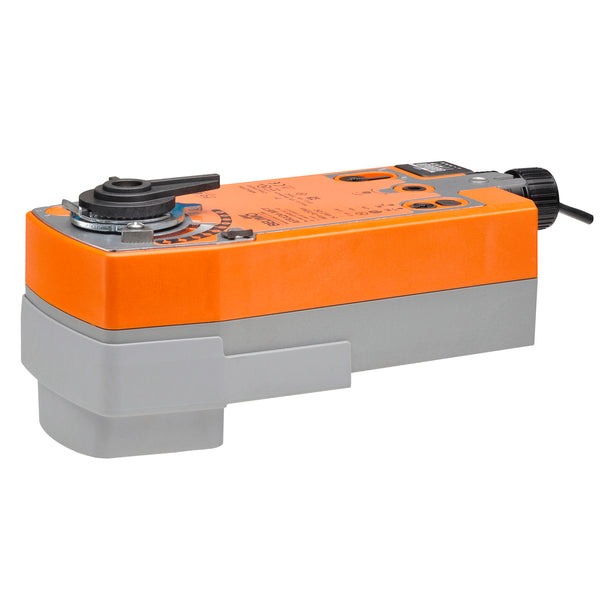

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Parts & Accessories Reviews

Overview

Details for AFRBUP

Valve Actuator | Spg Rtn | 24 to 240V (UP) | On/Off

200 psi (2: to 12") and 150 psi (14"-30") bubble tight shut-off, Long stem design allows for 2" insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installation

Specifications

Actuator Type: Spring return
Angle of Rotation: 90
Control Type: On/Off
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Power Consumption (Holding): 3.5 W
Power Consumption (Running): 7 W
Protection category: IP54
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC 24...240 V / DC 24...125 V

Documents and manuals

Belimo AFRBUP Documents

Datasheet More Info

Accessories

ZS-260 | Explosion proof housing. | Belimo $1,680.75 each

ZS-300-5 | NEMA 4X | 316L stainless steel enclosure. | Belimo $1,676.70 each

ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo $1,386.00 each

PS-100 | Actuator power supply and control simulator. | Belimo $919.35 each

UK24MOD | MODbus gateway module that can connect up to 8 MFT actuators. | Belimo $612.45 each

UK24LON | LON gateway module that can connect up to 8 MFT actuators. | Belimo $612.45 each
