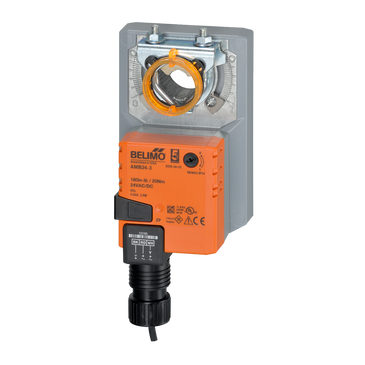

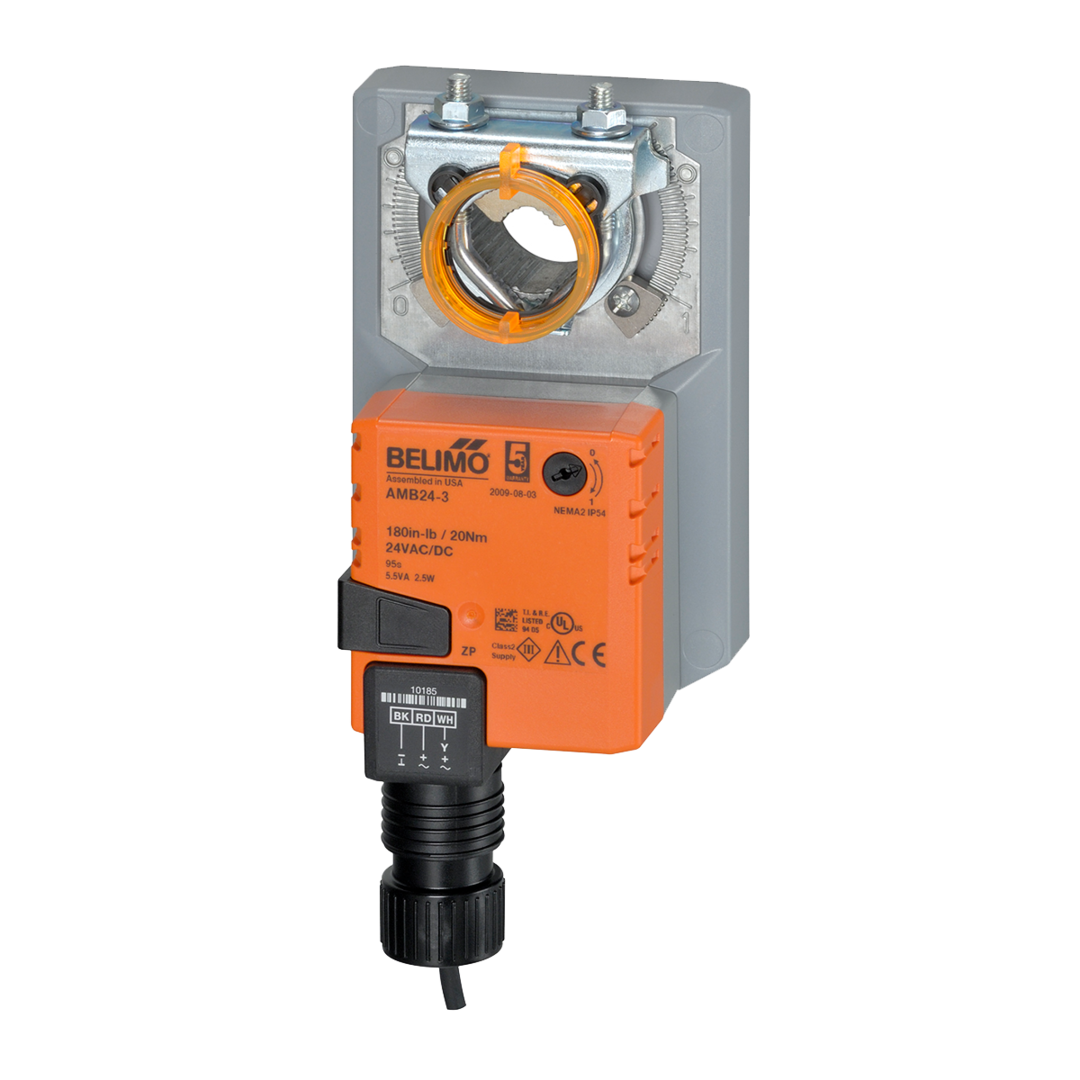

AMX24-MFT-X1 | Valve Actuator | Non-Spg | 24V | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Overview
Details for AMX24-MFT-X1
Valve Actuator | Non-Spg | 24V | MFT
Resilient Seat, 304 Stainless Steel Disc 200 psi (2: to 12") and 150 psi (14"-30") bubble tight shut-off, Long stem design allows for 2" insulation, Valve face-to-face dimensions comply with API 609 & MSS-SP-67, Completely assembled and tested, ready for installationSpecifications
- Item Number
- AMX24-MFT-X1
- Brand
- Belimo
- Actuator Type
- Valve
- Control Input
- Belimo MFT (Modulating)
- Spring Return
- Non-Spring Return
- Voltage
- 24V
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.3 W
- Power Consumption (Running)
- 3.5 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 300
- Controllable Flow Range
- 75B0
- Cv
- 24
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
Accessories
ZS-260 | Explosion proof housing. | Belimo
$1,680.75 each
ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo
$1,386.00 each
