F7125-300SHP+SY4-120MFT | Butterfly Valve | 5" | 3 Way | 688Cv | w/ Non-Spring | 120V | MFT | SW | NEMA 4XH | Belimo (OBSOLETE)

Butterfly Valve (BFV), 5", 3-way, ANSI Class 300, Cv 714 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 2 x SPDT

Belimo | F7125-300SHP+SY4-120MFT

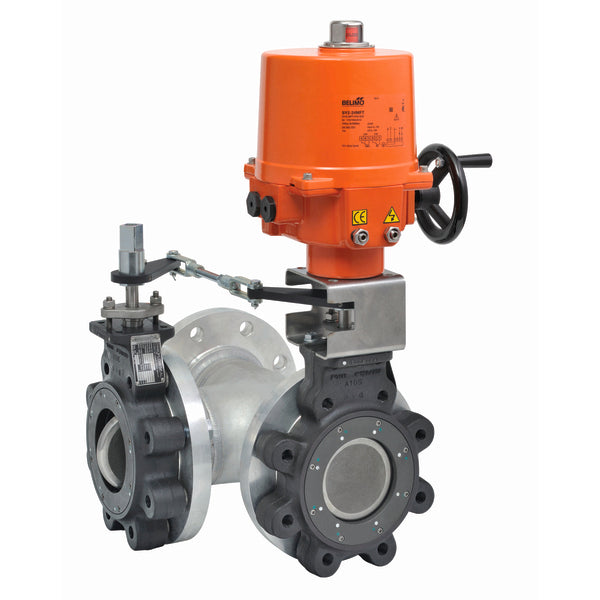

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F7125-300SHP+SY4-120MFT
Jump to: DocumentsOverview SpecificationsAlternativesReviews

Documents and manuals

Belimo F7125-300SHP+SY4-120MFT Documents

Datasheet

Overview

Details for F7125-300SHP+SY4-120MFT

DISCONTINUED AND REPLACED WITH F7125-300SHP+SY4-24

Butterfly Valve | 5" | 3 Way | 688Cv | w/ Non-Spring | 120V | MFT | SW | NEMA 4XH

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
300
Controllable Flow Range
Quarter turn mechanically limited
Cv
714
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Valve Size
5" [125]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Hand wheel
Running Time (Motor)
24 s
Voltage AC/DC
AC 120 V

Alternatives

Belimo F7125-300SHP+SY4-24 Butterfly Valve | 5" | 3 Way | 688Cv | w/ Non-Spring | 24V | On/Off | SW | NEMA 4XH | Blackhawk Supply
F7125-300SHP+SY4-24 | Butterfly Valve | 5" | 3 Way | 688Cv | w/ Non-Spring | 24V | On/Off | SW | NEMA 4XH | Belimo
$11,352.60 each
