F665HD+GRCX24-3 | 2-Way DI BFV | SS Disc | 2.5" | Cv 196 | w/Non-Spring Return | 24V | Floating | Belimo
Butterfly Valve (BFV), 2 1/2", 2-way, ANSI Class Consistent with 125, Cv 196 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

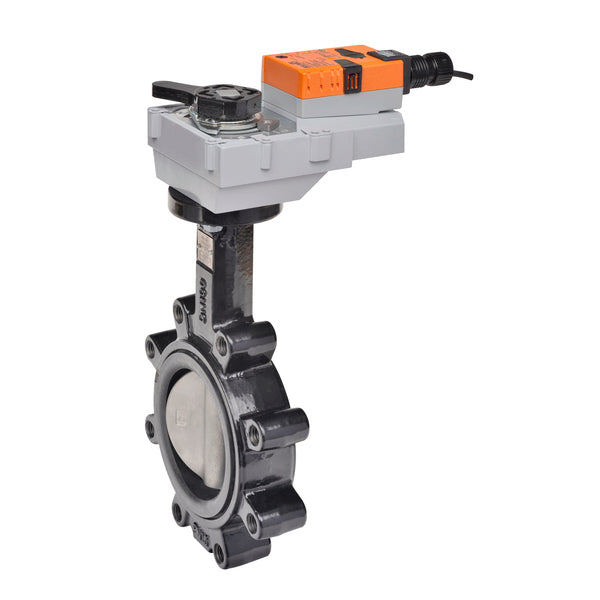

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F665HD+GRCX24-3
Documents and manuals
Belimo F665HD+GRCX24-3 Documents
Overview
Details for F665HD+GRCX24-3
2-Way DI BFV | SS Disc | 2.5" | Cv 196 | w/Non-Spring Return | 24V | Floating
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 196
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 8 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
