F6100HDU+GRX24-MFT-T N4 | Butterfly Valve | 4" | 2 Way | 600Cv | w/ Non-Spring | 24V | MFT | NEMA 4 | Belimo (OBSOLETE)
Butterfly Valve (BFV), 4", 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, terminals

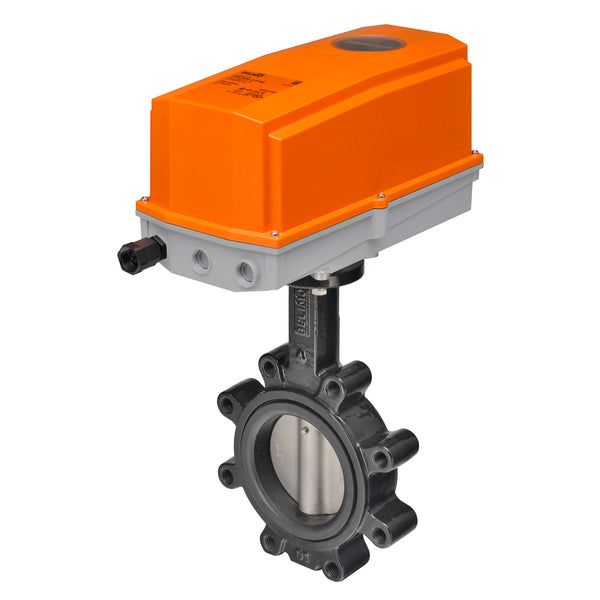

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6100HDU+GRX24-MFT-T N4
Documents and manuals
Belimo F6100HDU+GRX24-MFT-T N4 Documents
Overview
Details for F6100HDU+GRX24-MFT-T N4
DISCONTINUED AND REPLACED WITH F6100HD+DRCX24-3-T
Butterfly Valve | 4" | 2 Way | 600Cv | w/ Non-Spring | 24V | MFT | NEMA 4
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 600
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Under cover
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 8 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
