B6300S-110-250+ARX24-3-T N4 | CCV | 3" | 2 Way | 110 Cv | w/Non-Spring | 24V | Floating | NEMA 4 | Belimo

Characterized Control Valve (CCV), 3", 2-way, ANSI Class 250, Cv 110 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, NEMA 4X, terminals

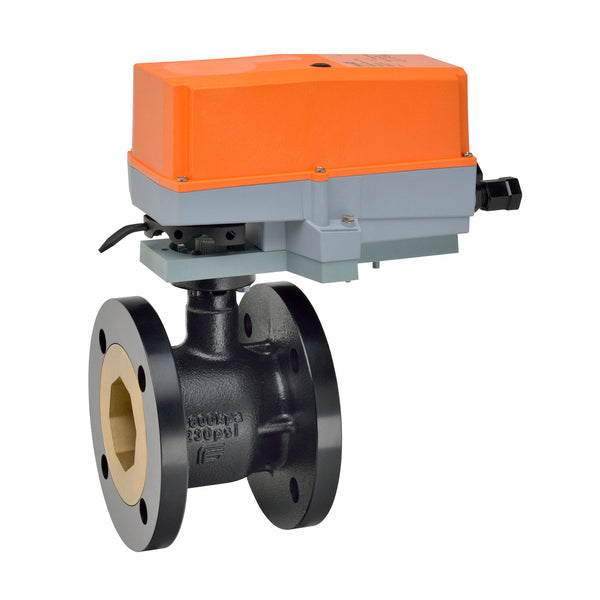

Belimo | B6300S-110-250+ARX24-3-T N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6300S-110-250+ARX24-3-T N4

Documents and manuals

Belimo B6300S-110-250+ARX24-3-T N4 Documents

Overview

Details for B6300S-110-250+ARX24-3-T N4

CCV | 3" | 2 Way | 110 Cv | w/Non-Spring | 24V | Floating | NEMA 4

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
250
Controllable Flow Range
75B0
Cv
110
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
3" [80]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Under cover
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
