B6250S-070-250+ARB24-3-5-14 | CCV | 2.5" | 2 Way | 70 Cv | w/Non-Spring | 24V | Floating | Belimo

Characterized Control Valve (CCV), 2 1/2", 2-way, ANSI Class 250, Cv 70 |Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point

Belimo | B6250S-070-250+ARB24-3-5-14

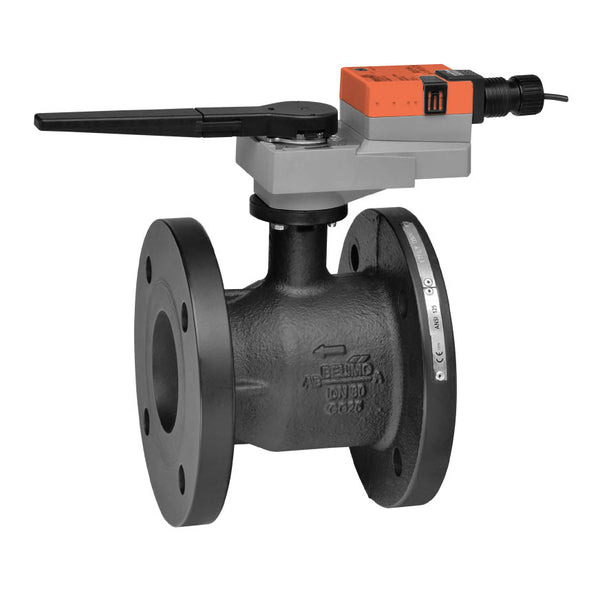

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6250S-070-250+ARB24-3-5-14

Documents and manuals

Belimo B6250S-070-250+ARB24-3-5-14 Documents

Overview

Details for B6250S-070-250+ARB24-3-5-14

CCV | 2.5" | 2 Way | 70 Cv | w/Non-Spring | 24V | Floating

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
250
Controllable Flow Range
75B0
Cv
70
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
