B2150VB-055+NFBUP-X1 | VBall Valve | 1.5" | 2 Way | 55 Cv | w/ Spg Rtn | 24 -240V | On/Off | Belimo

Ball Valve (VB), 1 1/2", 2-way, ANSI Class 300, Cv 55 |Valve Actuator, Spring return, AC 24...240 V / DC 24...125 V, On/Off

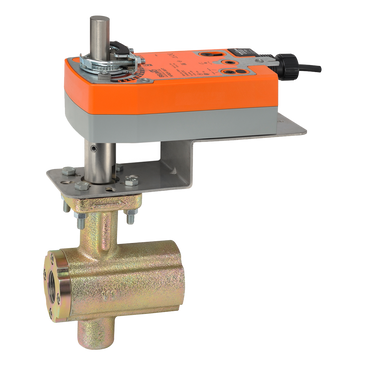

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to B2150VB-055+NFBUP-X1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo B2150VB-055+NFBUP-X1 Documents

Datasheet Installation Instructions More Info

Overview

Details for B2150VB-055+NFBUP-X1

VBall Valve | 1.5" | 2 Way | 55 Cv | w/ Spg Rtn | 24 -240V | On/Off

Product Features

Fast quarter turn open or closed operation, Stainless steel ball and stem, Positive shut-off, Two piece body construction

Application

Water-side control of air handling apparatus in ventilation and air-conditioning system. Water/Steam control in heating system. 300:1 rangeability.

The dimensions and drilling of end flanges conform to the American cast iron flange standard, Class 150 (ANSI B16.1).

Specifications

Valve specifications
Angle of Rotation: 95
ANSI Class: 300
Controllable Flow Range: 75B0
Cv: 55
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol steam
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 1.5" [40]
Actuator specifications
Actuator Type: Spring return
Control Type: On/Off
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: 5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding): 2.5 W
Power Consumption (Running): 6 W
Running Time (Fail-safe): <20 s
Running Time (Motor): 75 s / 90B0
Voltage AC/DC: AC 24...240 V / DC 24...125 V
