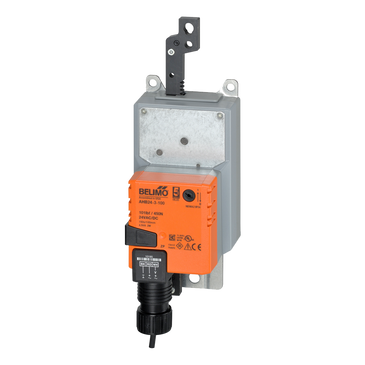

AHX24-3-200 | Damper Actuator | 101 lbf | Non-Spg Rtn | 24V | On/Off/Floating Point | Belimo
Configurable Damper Actuator, 100 lbf [450 N], Non fail-safe, AC/DC 24 V, On/Off, Floating point
Overview
Details for AHX24-3-200
Damper Actuator | 101 lbf | Non-Spg Rtn | 24V | On/Off/Floating Point
Application
For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.
Operation
The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.
The AHB(X)... series provides 4, 8, or 12 inches of linear stroke. The stroke of the gear rack can be adjusted on both sides in increments of 0.8 in [20 mm] by means of the mechanical end stops.
When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.
The AHB(X)24-3… actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode
Specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 450 N [100 lbf]
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 2 W
- Running Time (Motor)
- 150 s / 100 mm
- Safety Function
- NO
- Stroke
- 8" [200 mm]
- Voltage AC/DC
- AC/DC 24 V
