AHX120-3-100 | Damper Actuator | 101 lbf | Non-Spg Rtn | 100 to 240V | On/Off/Floating Point | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: AHX120-3-100

Web Price:

$295.20
Availability: This product is currently available to purchase
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

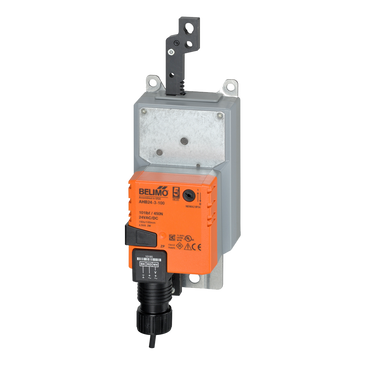

AHX120-3-100 | Damper Actuator | 101 lbf | Non-Spg Rtn | 100 to 240V | On/Off/Floating Point | Belimo

Belimo | AHX120-3-100
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for AHX120-3-100

Damper Actuator | 101 lbf | Non-Spg Rtn | 100 to 240V | On/Off/Floating Point

Application

For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

Operation

The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The AHX series provides 4, 8, or 12 inches of linear stroke. The stroke of the gear rack can be adjusted on both sides in increments of 0.8 in [20 mm] by means of the mechanical end stops.

When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover.

The AHX120-3 actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.


Specifications

Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
450 N [100 lbf]
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
150 s / 100 mm
Safety Function
NO
Stroke
4" [100 mm]
Voltage AC/DC
AC 100...240 V
