AHQB24-MFT-100 | Damper Actuator | 44 lbf | Non-Spg Rtn | 24V | Modulating | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: AHQB24-MFT-100

Web Price:

$481.50
Availability: This product is currently available to purchase
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

AHQB24-MFT-100 | Damper Actuator | 44 lbf | Non-Spg Rtn | 24V | Modulating | Belimo

Belimo | AHQB24-MFT-100

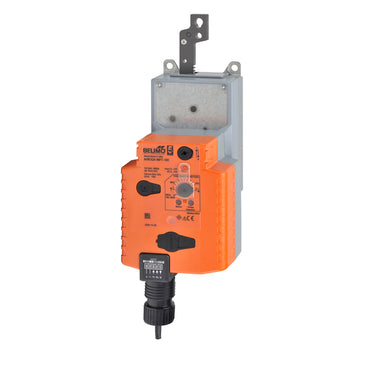

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for AHQB24-MFT-100

Damper Actuator | 44 lbf | Non-Spg Rtn | 24V | Modulating

Application

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications.

The default parameters for 2 to 10 VDC applications of the …MFT actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.

Operation

The actuator is not provided with and does not require and limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.

The AHQB(X) series provides 4” [100 mm] of linear stroke. The stroke of the gear rack can be adjusted on both sides in increments of 0.8” [20 mm] by means of the mechanical end stops. When reaching the damper or actuator end position, the actuator automatically stops.

The gears can be manually disengaged with a button on the actuator cover.

The AHQB(X)24-MFT-100 actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.


Specifications

Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
200 N [45 lbf]
Manual Override
External push button
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
13 W
Running Time (Motor)
7 s / 100 mm
Safety Function
NO
Stroke
1.6...4.0" [40...100 mm]
Voltage AC/DC
AC/DC 24 V
