AHB24-SR-200 | Damper Actuator | 101 lbf | Non-Spg Rtn | 24V | Modulating | Belimo

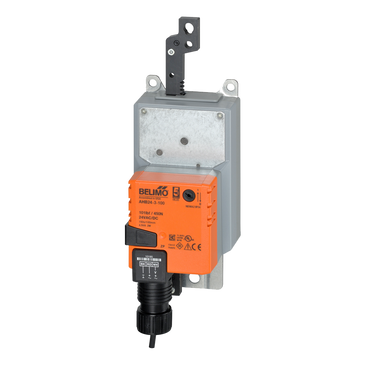

Belimo | AHB24-SR-200

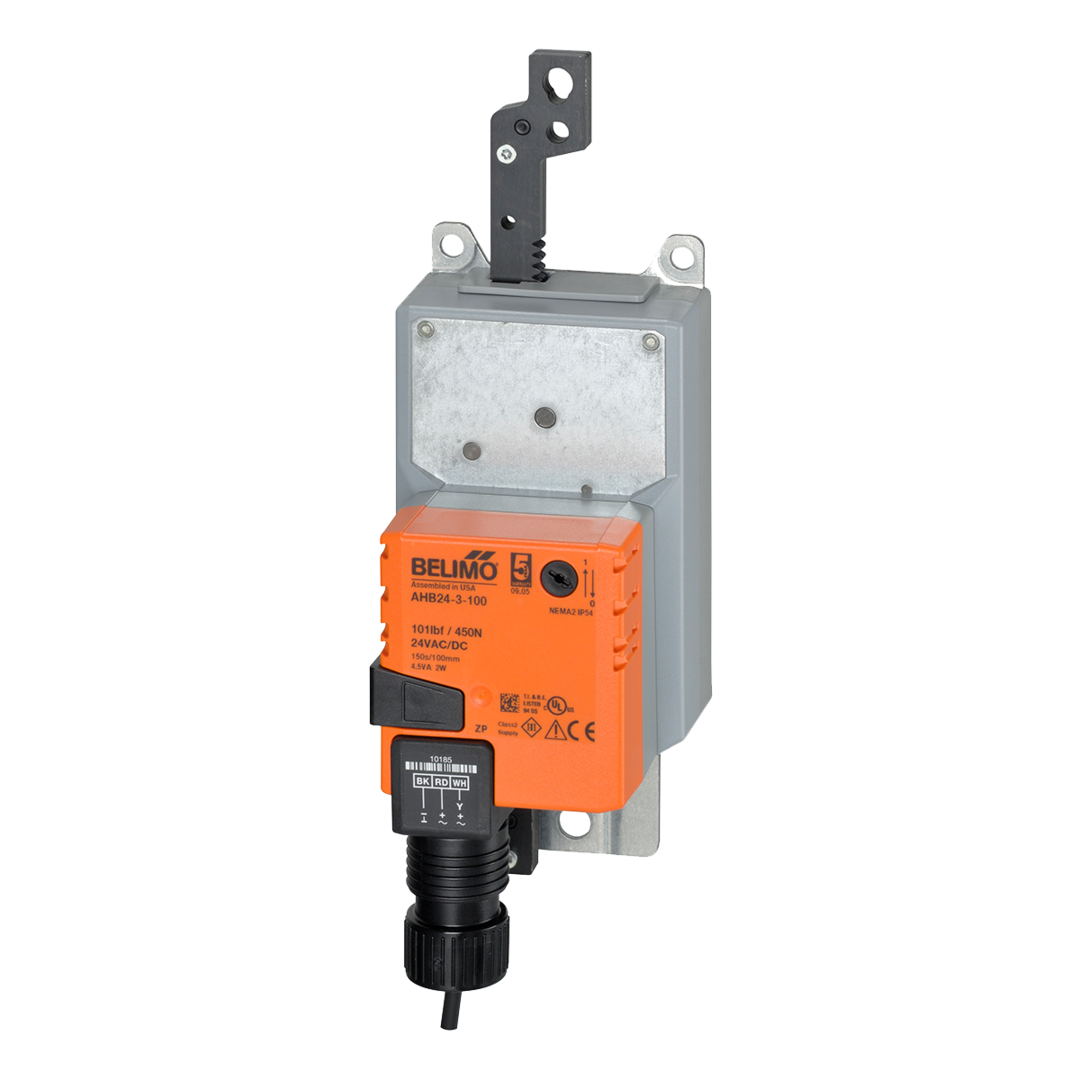

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Specifications Documents Parts & Accessories Reviews

Overview

Details for AHB24-SR-200

Damper Actuator | 101 lbf | Non-Spg Rtn | 24V | Modulating

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner.

Specifications

Actuator Type: Non fail-safe
Control Type: DC 2...10 V
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Force: 450 N [100 lbf]
Manual Override: External push button
Power Consumption (Holding): 0.5 W
Power Consumption (Running): 2.5 W
Running Time (Motor): 150 s / 100 mm
Safety Function: NO
Stroke: 8" [200 mm]
Voltage AC/DC: AC/DC 24 V

Documents and manuals

Belimo AHB24-SR-200 Documents

Datasheet More Info

Accessories

UK24BAC | BACnet gateway module that can connect Up to 8 MFT actuators. | Belimo

UK24BAC | BACnet gateway module that can connect Up to 8 MFT actuators. | Belimo $612.45 each

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo

ZTH US | Handheld programming tool with ZK1-GEN | ZK2-GEN and ZK6-GEN. | Belimo $454.95 each

ZK1-GEN | Cable for use with ZTH US to connect to diagnostic/programming socket. | Belimo

ZK1-GEN | Cable for use with ZTH US to connect to diagnostic/programming socket. | Belimo $69.30 each

ZK6-GEN | Cable for use with ZTH US to connect to SY actuators via RJ11 port. | Belimo

ZK6-GEN | Cable for use with ZTH US to connect to SY actuators via RJ11 port. | Belimo $33.75 each

ZK2-GEN | Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Belimo

ZK2-GEN | Cable for use with ZTH US to connect to actuators not equipped with diagnostic/programming socket. | Belimo $32.40 each

Z-KSC | 3/8"-16 shaft clevis for AHK/AH. | Belimo

Z-KSC | 3/8"-16 shaft clevis for AHK/AH. | Belimo $30.15 each
