AHB24-SR-100 | Damper Actuator | 101 lbf | Non-Spg Rtn | 24V | Modulating | Belimo

Damper Actuator, 100 lbf [450 N], Non fail-safe, AC/DC 24 V, 2...10 V, cable, modulating

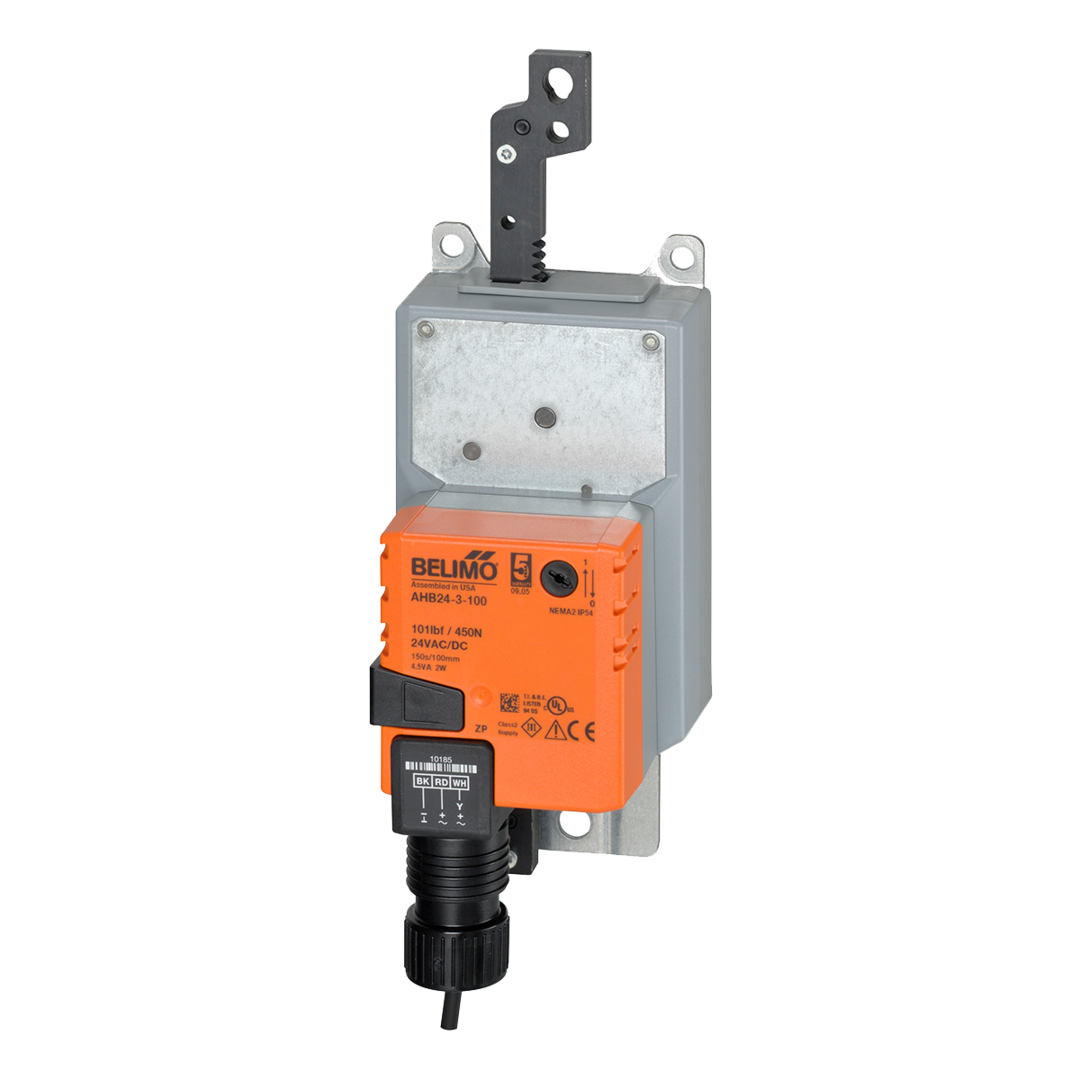

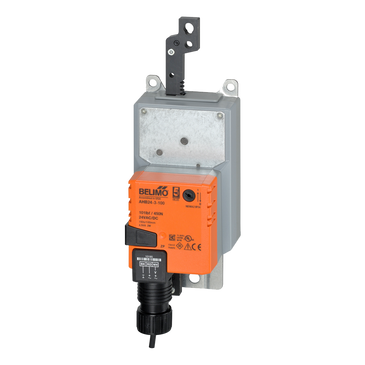

Belimo | AHB24-SR-100
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AHB24-SR-100

Documents and manuals

Belimo AHB24-SR-100 Documents

Overview

Details for AHB24-SR-100

Damper Actuator | 101 lbf | Non-Spg Rtn | 24V | Modulating

For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner.

Specifications

Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
450 N [100 lbf]
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
150 s / 100 mm
Safety Function
NO
Stroke
4" [100 mm]
Voltage AC/DC
AC/DC 24 V
