AFXUP N4 | Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4 | Belimo
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: AFXUP N4

Web Price:

$798.30
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

AFXUP N4 | Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4 | Belimo

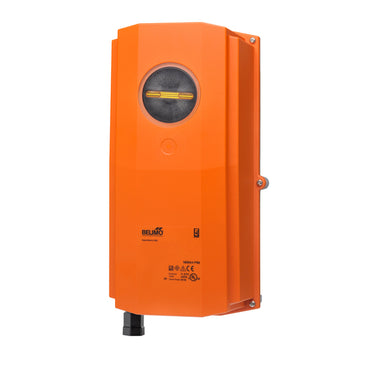

Configurable Damper Actuator, 180 in-lb [20 Nm], Spring return, AC 24...240 V / DC 24...125 V, On/Off, NEMA 4X

Belimo | AFXUP N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AFXUP N4

Documents and manuals

Belimo AFXUP N4 Documents

Overview

Details for AFXUP N4

Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | NEMA 4

Application

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. Maximum of two AF’s can be piggybacked for torque loads of up to 266 in-lbs. Minimum 3/4” diameter shaft and parallel wiring.

Operation

The AF..UP N4 series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides constant torque to the damper with, and without, power applied to the actuator. The AF..UP N4 series provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AF..UP N4 actuator is shipped at +5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.


Specifications

Actuator Type
Spring return
Angle of Rotation
95
Control Type
On/Off
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Safety Function
YES
Torque
180 in-lb [20 Nm]
Voltage AC/DC
AC 24...240 V / DC 24...125 V
