AFX24-V | Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating | Belimo (OBSOLETE)

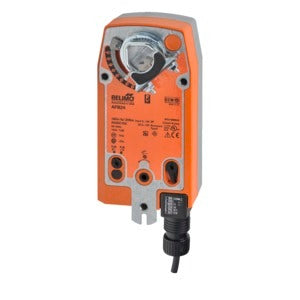

Belimo | AFX24-V
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for AFX24-V

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Damper Actuator | 180 in-lb | Spg Rtn | 24V | Modulating

Application

Direct coupled, fail-safe actuators for direct connect to VAV and CAV units. Actuators are easily installed by direct shaft mounting on air dampers in ventilation and air conditioning systems. Actuator can be controlled by Belimo VR.. controller. For modulation of dampers and control valves in HVAC systems. The AFX24-V provides mechanical spring return operation for reliable fail-safe application.

Operation

The AFX24-V actuator provides 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. The actuator will synchronize the 0° mechanical stop or the physical damper or valve mechanical stop and use this point for its zero position during normal control operations. A unique manual override allows the setting of any actuator position within its 95° of rotation with no power applied. This echanism can be released physically by the use of a crank supplied with the actuator. When ower is applied the manual override is released and the actuator drives toward the fail-safe position. The actuator uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor. The microprocessor provides the intelligence to the ASIC to provide a constant rotation rate and to know the actuator’s exact position. The ASIC monitors and controls the brushless DC motor’s rotation and provides a Digital Rotation Sensing (DRS) function to prevent damage to the actuator in a stall condition. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The AFX24-V is mounted directly to control shafts up to 1.05” diameter by means of its universal clamp and anti-rotation bracket. A crank arm and several mounting brackets are available for damper applications where the actuator cannot be direct coupled to the damper shaft. The spring return system provides minimum specified torque to the application during a power interruption. The AFX24-V actuator is shipped at +5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off.

Specifications

Item Number AFX24-V
Brand Belimo
Actuator Type Damper
Control Input Modulating
Spring Return Spring Return
Torque 180 in-lb
Voltage 24V
