LNP-1802G-SFP-T | 18-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/1610/100/1000Tx (30W/Port) + 2100/1000 SFP Slots; EOT: -40° ~ 75°C | Antaira

18-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, w/16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slots; EOT: -40° ~ 75°C

Brand: AntairaSKU: LNP-1802G-SFP-T

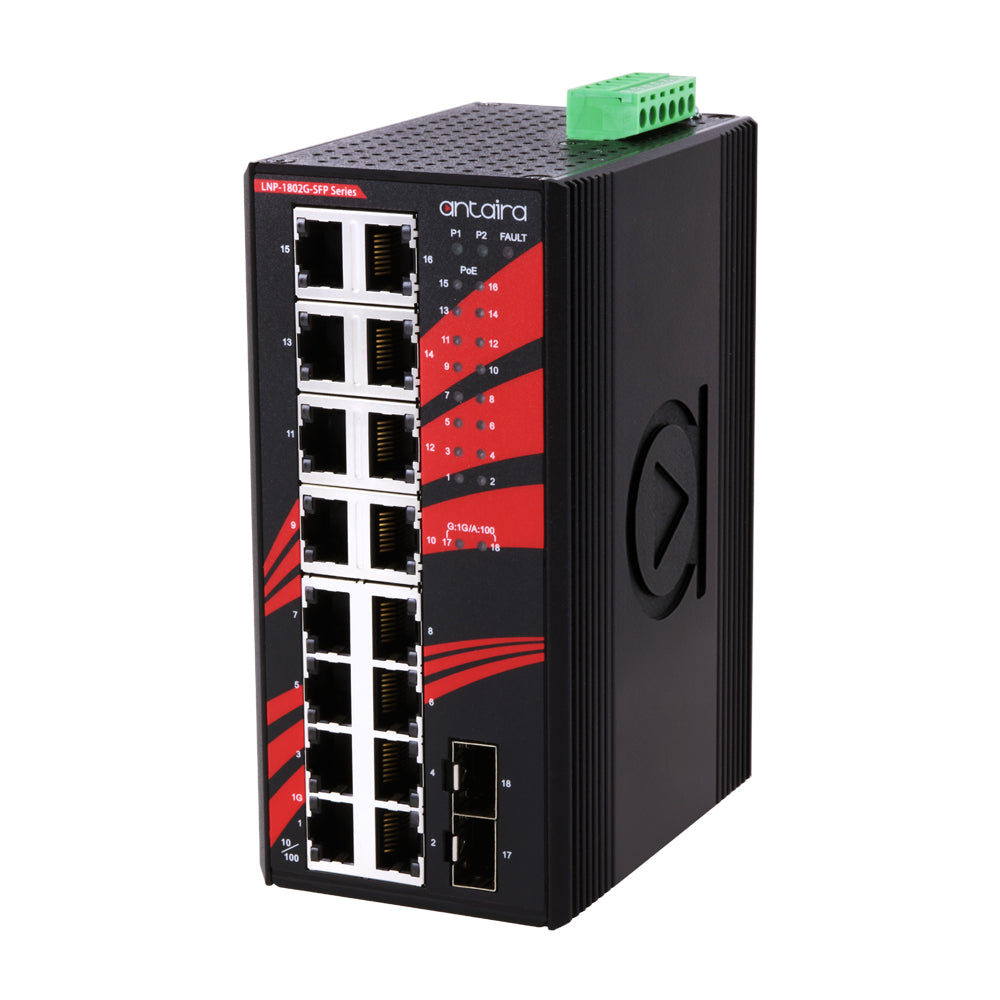

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LNP-1802G-SFP-T

Overview & Specifications Reviews Parts & Accessories

Overview Details for LNP-1802G-SFP-T

18-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch | w/16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slots; EOT: -40° ~ 75°C

Antaira’s LNP-1802G-SFP-T industrial PoE+ gigabit unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The unit is designed with 16 gigabit Ethernet ports that support IEEE 802.3at (PoE+) with a maximum of 30W/Port; and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-1802G-SFP-T has an operating temperature range of -40° to 75°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications or harsh weather environments.

Features

Supports 16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP ports
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 48~55VDC
Built-in 1 Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range: -40° to 75°C
5-Year Warranty

Included

DC Cable - 18 AWG with DC jack 5.5x2.1mm
LNP-1802G-SFP-T
Quick Installation Guide
RJ45 dust cover set
Wall mounting bracket set with screws

Specifications

Ambient Relative Humidity: 5% to 95%, (non-condensing)
Certifications: FCC, CE
Dimensions: 67 x 142 x 99 mm (W x H x D)
EMI: FCC Part 15 Subpart B Class A,;CE EN 55032 Class A,;EN 61000-6-4 Class A
EMS: CE EN 55024 Class A,;EN 61000-6-2 Class A,;IEC61000-4-2 (ESD),;IEC61000-4-3 (RS),;IEC61000-4-4 (EFT),br>IEC61000-4-5 (Surge),;IEC61000-4-6 (CS),;IEC61000-4-8 (Magnetic Field)
Ethernet Port: 16*10/100/1000T(X) with 16*PoE+, auto;negotiation speed, Full/Half duplex mode, and;auto MDI/MDI-X connection
Fiber Port: 2*100/1000 SFP Slot
Flow Control: IEEE 802.3x back pressure flow control
Free Fall: IEC60068-2-32
Housing: Aluminum and Metal, IP30 protection
Input Voltage: 48 to 55VDC, Redundant Inputs
Jumbo Frame: 9,216bytes
LED Indicators: Power 1, Power 2, Fault;Ethernet Ports: On- Link / Flashing- Data transmitting;PoE: On- connected to PD devices;SFP: Link / Active
MAC Table Size: 8K
Max. PoE Power Budget: 240Watts
Memory Buffer: 512Kbytes
Mounting: DIN-Rail, Wall Mounting (optional)
Network Cable: 10BaseT: 2-pair UTP/STP Cat. 3, 4, 5 cable;EIA/TIA-568 100-ohm (100m);100BaseTX: 2-pair UTP/STP Cat. 5 cable;EIA/TIA-568 100-ohm (100m);1000BaseTX: UTP/STP Cat.5/5E cable;EIA/TIA-568 100-ohm (100m)
Operating Temperature: STD: -10°C to 65°C;EOT: -40°C to 75°C
Overload Current Protection: Present
PoE Pin Out: V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI;Alternative A)
PoE Power Output: 30Watts max. per PoE port
Power Connection: 1 removable 6-contact terminal block
Power Consumption: 15Watts for System
Processing Type: Store and Forward
Protocols: CSMA/CD
Relay Contact: 24VDC, 1A resistive
Reverse Polarity Protection: Present
Shock: IEC60068-2-27
Standards: IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet;IEEE 802.3ab 1000BaseT;IEEE 802.3z 1000Base-X Gigabit Fiber;IEEE 802.3af/at Power over Ethernet
Storage Temperature: -40°C to 85°C
Switching Architecture: Back-Plane: Non-Blocking Switching Fabric
Transfer Rate: 14,880pps for Ethernet Port;148,800pps for Fast Ethernet Port;1,488,000pps for Gigabit Ethernet Port
Vibration: IEC60068-2-6
Warranty: 5 Years
Wavelength: Depends on SFP modules
Weight: Unit: 2.65 Ibs.;Shipping: 3.09 Ibs.
